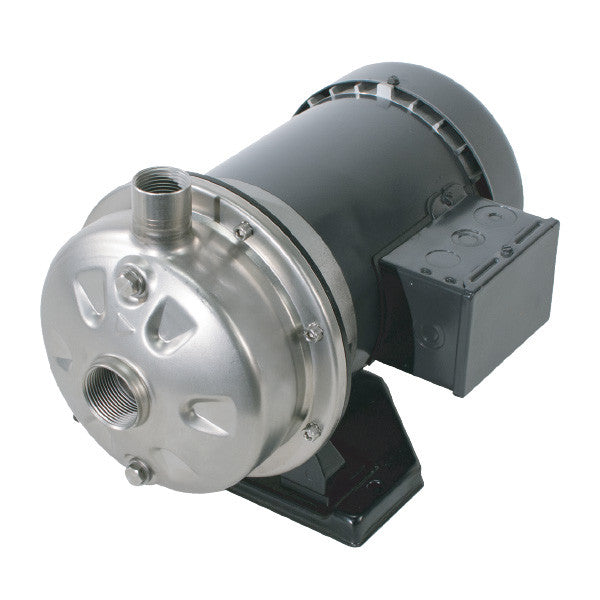

PEARL by EBARA Stainless Steel Centrifugal-CSPET

Product Specifications

CSPET is an end-suction centrifugal pump. The water pump was designed taking into consideration the features needed to guarantee complete customer satisfaction, including:

• Close coupled design – saves space; simplifies maintenance and installation
• Stainless steel liquid end components – high quality; corrosion resistance
• Versatile mounting – can be installed horizontally or vertically
• Back pullout construction – allows for assembly and overhaul of the impeller and seal without distorting suction and discharge connections
• Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
• High-efficiency – lowers operating costs
• High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation
• Available as a complete pump or as a kit

APPLICATIONS

• Pressure Boosting
• Plant Services
• Water Supply Systems
• Liquid Transfer
• Reverse Osmosis
• Ultrapure Water Systems
• Water Reclamation
• Water Treatment
• Irrigation
• Air Conditioning Systems

OPERATING CONDITIONS

• Suction Size: 1 1/4” to 1 1/2” NPT Thread
• Discharge Size: 1” NPT Thread
• Power Range: 1/2 to 5 hp

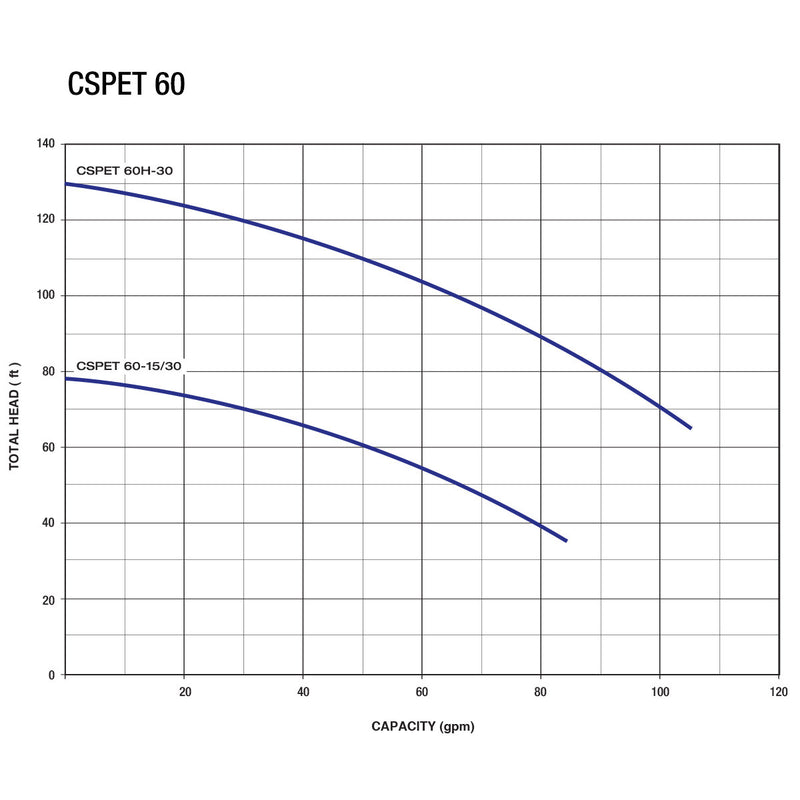

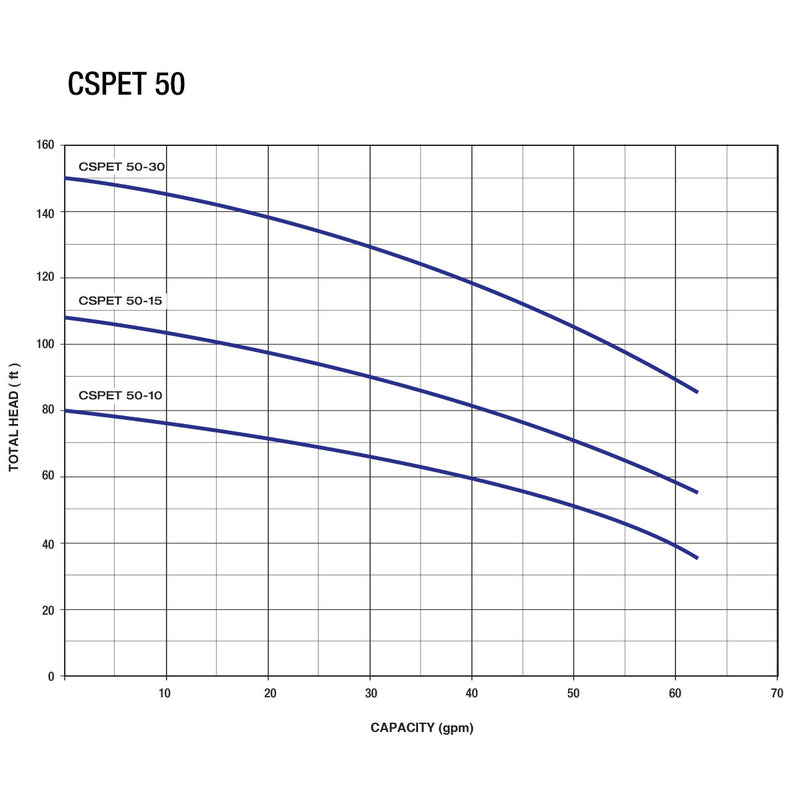

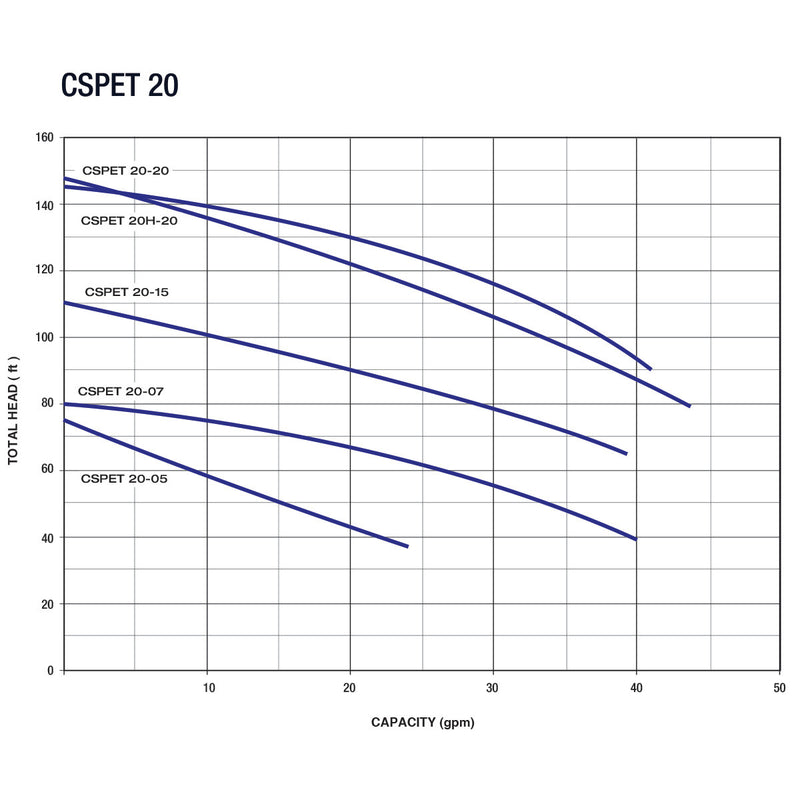

• Capacity: 5 to 105 gpm
• Head: 3 to 255 feet
• Liquid: Clean Water

PUMP CONSTRUCTION

• Threaded ports NPT
• 304L Stainless Steel Casing
• 304L Stainless Steel Impeller (closed type)
• Stainless Steel Shaft
• Aluminum Bracket
• Type 21 Mechanical Seal
• Ball Bearing

MOTOR

• 1/3 – 3 HP
• 56J frame
• Available in ODP or TEFC construction
• Sturdy steel frame
• Cast aluminum end plates with steel bearing seat inserts for mechanical reliability
• Automatic thermal overload protection
• Corrosion resistant stainless steel shaft extension
• Slotted opposite DE shaft for easy installation
• Optimized airflow design providing higher horsepower in a smaller package
