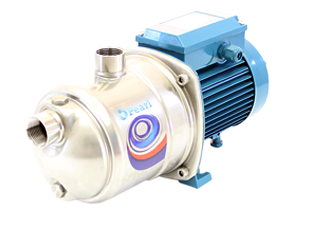

MSC DELUXE - STAINLESS STEEL MULTI STAGE PUMP DELUXE UPGRADED VERSION FOR REVERSE OSMOSIS APPLICATIONS

MSC DELUXE - STAINLESS STEEL MULTI STAGE PUMP DELUXE UPGRADED VERSION FOR REVERSE OSMOSIS APPLICATIONS

This new version of the MSC has been designed for water treatment applications. The components were developed to resist the extreme working conditions of the systems pumping liquid with surfure. The MSC DELUXE has been sized to work in boosting operation because the components resist pressure above standard pumps.

An exclusive diffuser design with flow control device provides for compact construction, fast self-priming capability and low noise.

Reliable with new design features the MSC DELUXE  is more robust and forgiving when temporary abnormal operating conditions may exist.

Fast air evacuation reduces the risk of air-pockets developing at the mechanical seal preventing the danger of seal failure due to a lack of flushing and cooling.

The MSC DELUXE are capable of lifting water from depths of 29 ft in less than 3 minutes, offers new possibilities on suction lift applications and provides better trouble free service on normal shallow-well suction lift duties, also with a long suction pipe above the water level.

The new diffuser and flow control device guide the fluid from the impeller into the central part of the pump casing, reducing turbulence and velocity, with effective use of the surrounding liquid in dampening the noise of flow.

APPLICATIONS

  • For drawing water out of a well.
  • For lifting water containing air or other gases.
  • For increasing water pressure from flooded suction applications.
  • As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
  • For garden use.
  • For washing with a jet of water.

CONSTRUCTION

  • Close-coupled self-priming shallow-well jet pump with built-in ejector.
  • Connections: threaded ports NPT.

MOTOR

  • 2-pole induction motor, 60 Hz (n ˜ 3450 rpm).
  • Three-phase 230/460 V.
  • Single-phase 115/230 V, 115 V, 230 V.
  • Capacitor inside the terminal box.
  • Insulation class F.
  • Protection IP 44.

MATERIALS

  • Pump Casing: Cast iron GJL 200 EN 1561
  • Casing Cover: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
  • Impeller Brass: P-Cu Zn 40 Pb 2 UNI 5705
  • Wear Ring Impeller-Diffuser: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
  • Diffuser: PPO-GF20 (Noryl)
  • Ejector: PPO-GF20 (Noryl)
  • Shaft: Chrome Steel 1.4104 EN 10088 (AISI 304)
  • Mechanical Seal: Carbon - Ceramic - NBR


TECHNICAL DATA:

MODEL

HP

VOLT

PHASE

MAX. AMP

SUCT.

DISCH.

WT. LBS

MSC20 07F16D

0.7

115/230

1

10.7/5.4

1"

1"

24
