Calpeda Pump Model C41 15H36S 1.5HP 60Hz
by Calpeda
Save 30%
Original price
$2,065.00
Current price
$1,445.50
SKU C41 15H36S
Features

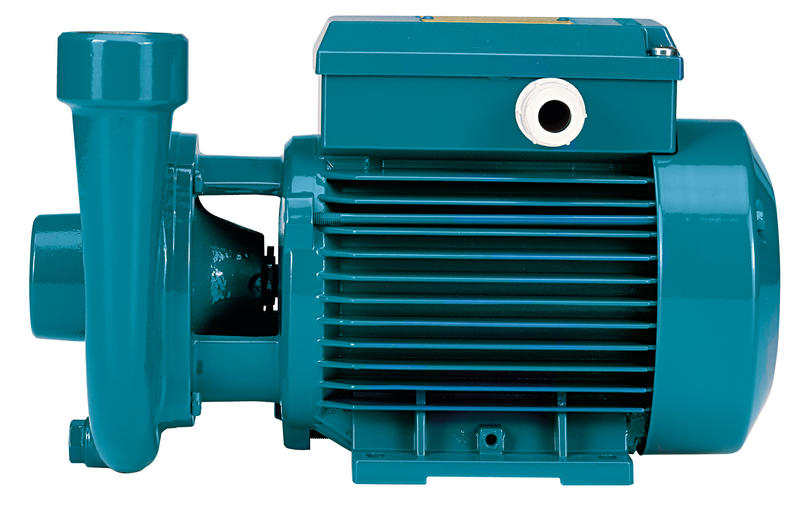

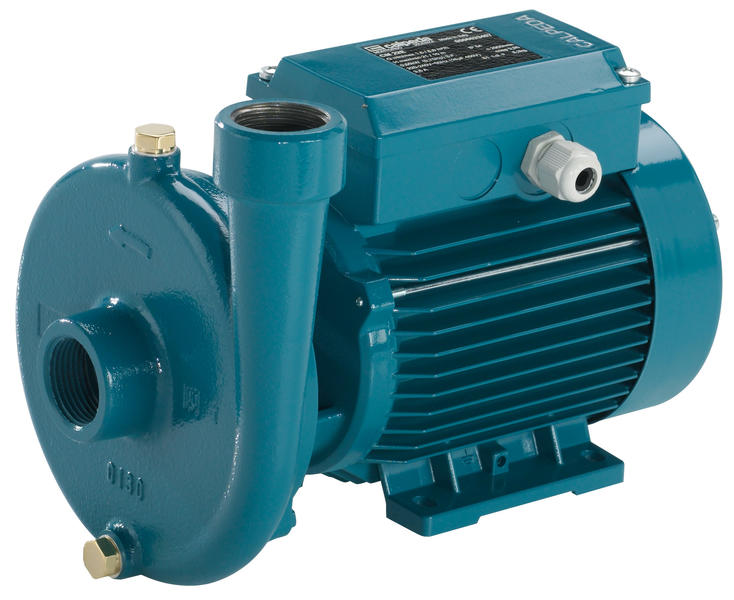

Close-coupled centrifugal pumps with open impeller.
Free-flow impeller (vortex or recessed impeller) for type C 16/1E.
Connections:threaded ports ISO 228/1. Threaded ports NPT (ANSI/ASME B1.20.1) on request

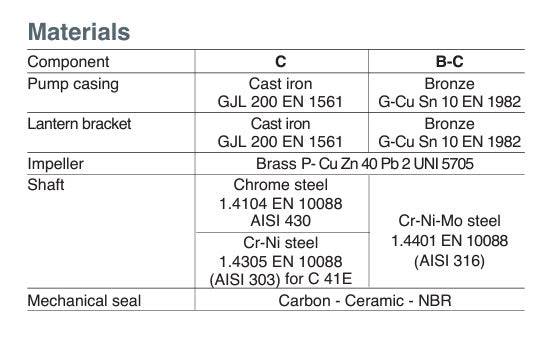

Pump casing and lantern bracket in bronze (the pumps are supplied fully painted).
BC WATER PUMP APPLICATIONS
BC WATER PUMPOPERATING CONDITIONS
BC WATER PUMPMOTOR
BC WATER PUMPSPECIAL FEATURES ON REQUEST
Free-flow impeller (vortex or recessed impeller) for type C 16/1E.
Connections:threaded ports ISO 228/1. Threaded ports NPT (ANSI/ASME B1.20.1) on request
Pump casing and lantern bracket in bronze (the pumps are supplied fully painted).
BC WATER PUMP APPLICATIONS
- For moderately dirty liquids or emulsions.
- For industry and agriculture.
BC WATER PUMPOPERATING CONDITIONS
- Liquid temperature from -10 °C to +90 °C.
- Ambient temperature up to 40 °C.
- Total suction lift up to 8 m.
- Maximum permissible working pressure: 6 bar.
- Maximum size of solids: 4 mm.
- Continuous duty.
BC WATER PUMPMOTOR
- 2-pole induction motor, 50 Hz.
- Single-phase 110 V, 127 V, 220 V. with thermal protector up to 1.1 kW only 220V.
- Capacitor inside the terminal box.
- Insulation class F.
- Protection IP 54.
- Motor suitable for operation with a frequency converter from 1,1 kW.
- Classification scheme IE3 for three-phase motors from 0,75 kW.
- Constructed in accordance with:
EN 60034-1;
EN 60034-30-1.
EN 60335-1,
EN 60335-2-41.
BC WATER PUMPSPECIAL FEATURES ON REQUEST
- Other voltages.
- Protection IP 55.
- Special mechanical seal
- Higher or lower liquid or ambient temperatures.
- Motor suitable for operation with frequency converter up to 0,75 kW.
