Calpeda TP Series - Turbine Pump with Peripheral Impeller

by Calpeda
Save 30%
Original price $1,008.85
Current price $706.20
SKU TP80 07A16S

Features:

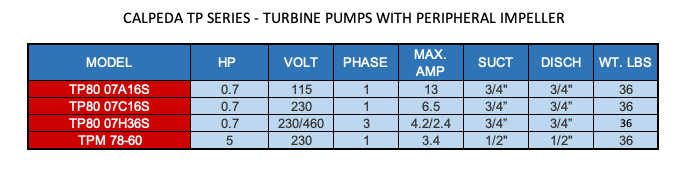

CALPEDA TP SERIES - TURBINE PUMPS WITH PERIPHERAL IMPELLER

SKU USA CALPEDA MODEL
TP80 07A16S TPM 80-60 115V
TP80 07C16S TPM 80-60 230V
TP80 07H36S TP 89-60 230/460V
TPM 78-60  TPM 78-60 230V


*PLEASE SEE IMAGES FOR SELECTION*


Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.  Compact, patented construction with single-piecemotor casing and pump-side wall.Protected against water entering the motor from outside.
Connections:  threaded ports NPT.

APPLICATIONS

  • For clean liquids without abrasives, without suspended  solids, non-explosive, non-aggressive for the pump materials.
  • For increasing network pressure (follow local specifications).
  • For the reduced dimensions, these pumps are very well suitable  to be mounted in cooling and air-conditioning machines  and equipments, circulation, boiler feed.

OPERATING CONDITIONS

  • Liquid temperature from 14 F to 194 F.
  • Ambient temperature up to 104 C.
  • Total suction lift up to 23 ft.
  • Continuous duty.

MOTOR

  • 2-pole induction motor, 60 Hz (n ‹ “ 3450 rpm).
  • Three-phase 230/460 V.
  • Single-phase 115 V, 230 V, with thermal protector.
  • Capacitor inside the terminal box.
  • Insulation class F.
  • Protection IP 44.

SPECIAL FEATURES ON REQUEST

  • Other voltages.
  • Special mechanical seal
  • Higher or lower liquid or ambient temperatures.

MATERIALS

  • Pump casing: Cast iron GJL 200 EN 1561
  • Lantern bracket: Cast iron GJL 200 EN 1561
  • Casin cover: Brass CW510L (lead free public LAW 111-380)
  • Cast iron GJL 200 EN 1561 for T76, TP 80
  • Impeller: Brass CW510L (lead free public LAW 111-380)
  • Shaft: Chrome-nickel steel AISI 303 for T 76, Tp 80
  • Chrome steel AISI 430 for CT, T61-65-70
  • Mechanical seal: Carbon - Ceramic - NBR
