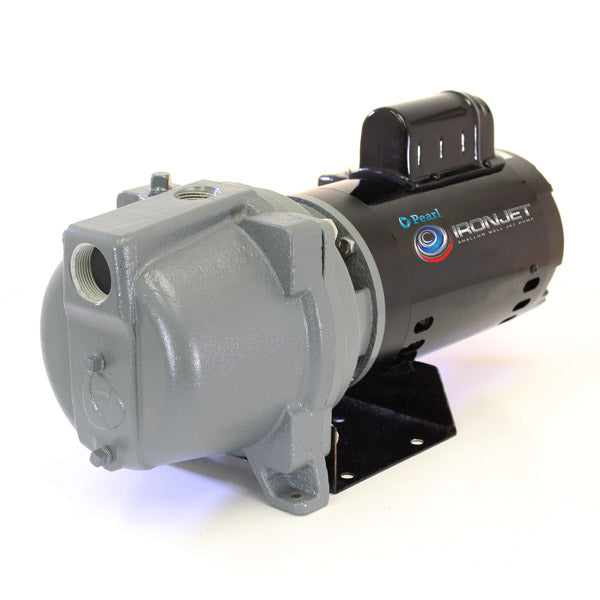

Pearl Irrigation Jet Pump for Shallow Wells - Model IRONJ - Irrigation System Pumps

by Pearl
Save 53%
Original price $861.00
Current price $408.80
SKU IRONJ 05F16P

Features

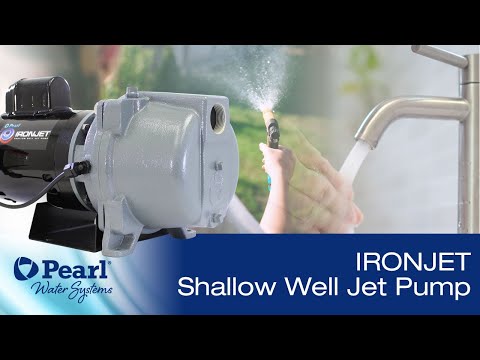

IRON JET is a self-priming jet pump, after the first priming, the pump will never need to prime again. The pump design and features guarantee complete customer satisfaction, as all components were carefully manufactured to assure the best performance and reliability.

IRON JET construction is suitable for outdoor applications.

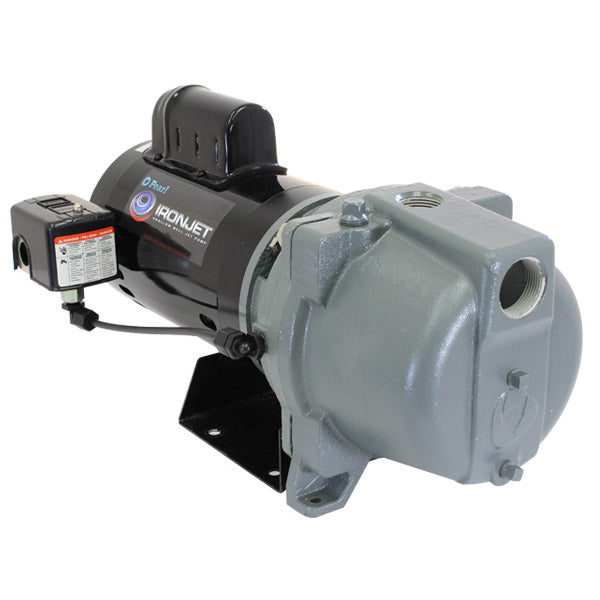

IRON JET comes equipped with a PEARL pressure switch for quick installation.

Applications

  • Supplying domestic water supply out of a well at desirable pressure.
  • Lifting water containing air or other gases
  • Boost pressure from flooded suction applications
  • For garden use

Operating Conditions

  • Liquid temperature: 32 F to 150 F
  • Maximum working pressure: 125 PSI
  • Continuous duty Construction
  • Closed coupled self-priming centrifugal pump
  • High-quality components for domestic water supply and irrigation in respect to low lead requirements
  • Connections threaded ports NPT
  • All hardware is Stainless Steel
  • Pre-drilled priming port with plug
  • Pre-drilled drain port with plug for maintenance
  • U shape base on all models gives complete full support to the pump Motor
  • NEMA Standard ODP 56J motors for much cooler surface temperature
  • Thermal overload protection
  • Capacitor start, capacitor run type motor for the ½ - ¾ HP versions
  • Permanent Split Capacitor (PSC) without the centrifugal switch for the 1 - 1 ½ HP versions
  • The front bearing 6204 for a much longer life span
  • All copper winding
  • Class F Dupont Nomex Insulation System, cCSAus approved

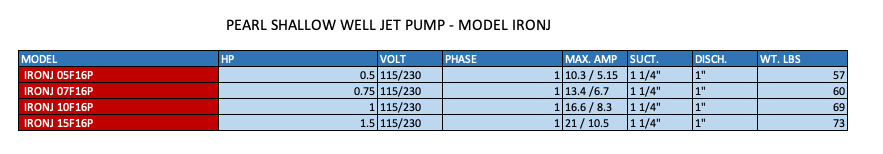

  • Single phase ½ - ¾ - 1 - 1 ½ HP, 115/230 V

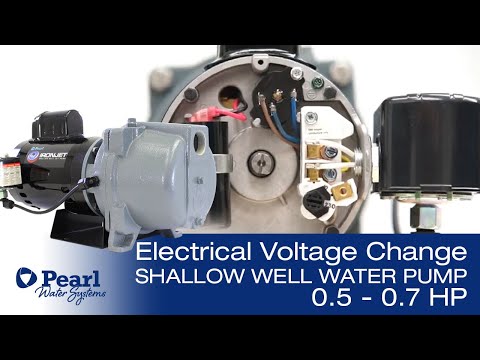

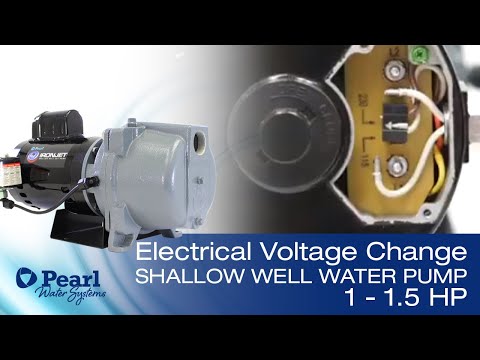

  • Easy voltage conversion
  • Maximum ambient temperature admitted: 40 C (104 F)

Assembled With

  • PEARL Pressure switch

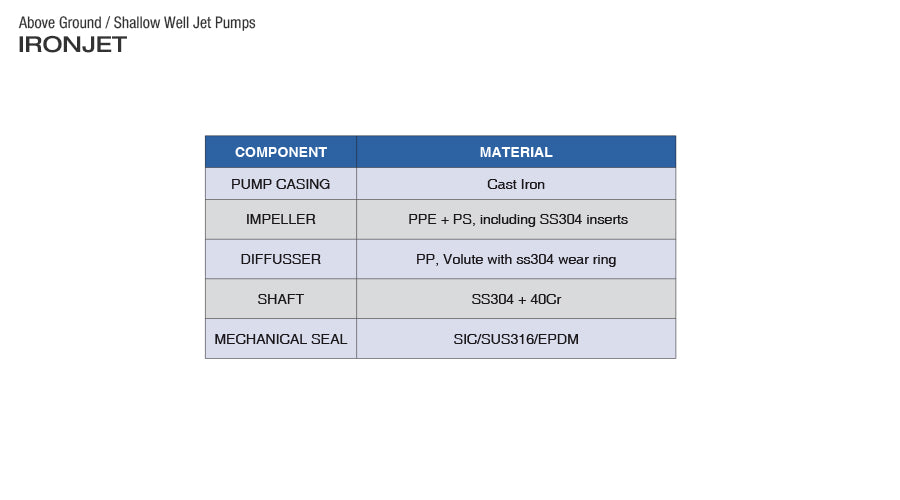

Materials

COMPONENT MATERIAL

  • PUMP CASING Cast Iron
  • IMPELLER PPE + PS, including SS304 inserts
  • DIFFUSER PP, Volute with ss304 wear ring
  • SHAFT SS304 + 40Cr
  • MECHANICAL SEAL SIC/SUS316/EPDM

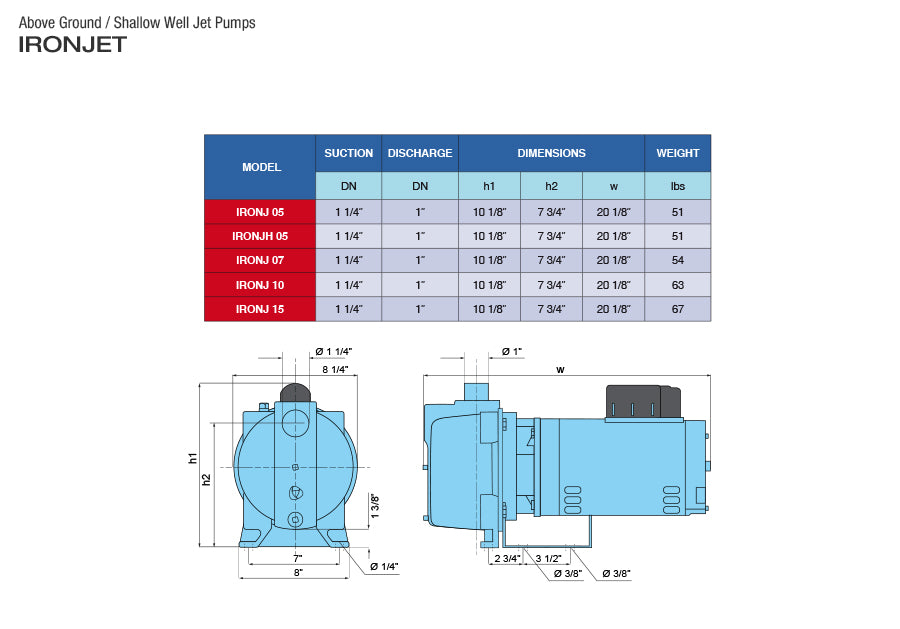

PRODUCT CATALOG  - PEARL INRONJ Sprinkler Water Pump
