Pearl Multistage Irrigation Water Pump. Stainless Steel - MSC Model

by Pearl
Save 30%
Original price $996.43
Current price $697.50
SKU MSC20 05A16S

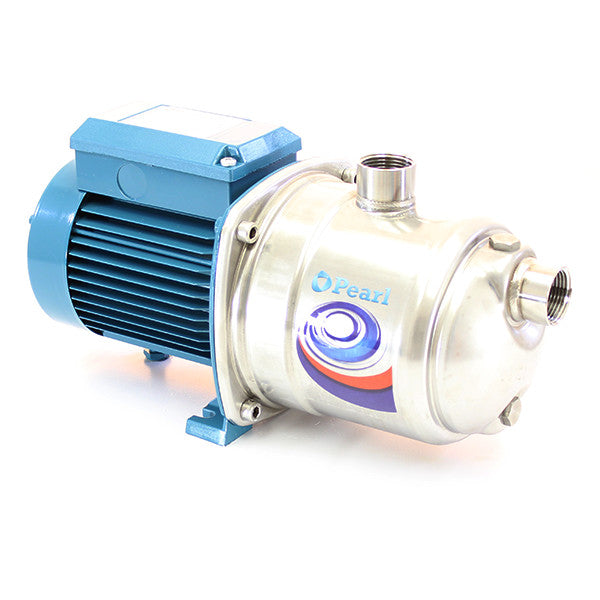

Stainless Steel Multi Stage Water Pump - MSC MODEL

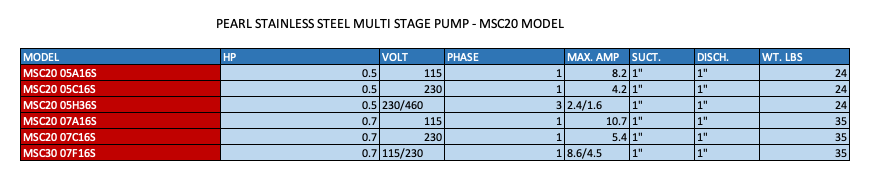

**PLEASE SEE IMAGES FOR PUMP SELECTION**

FEATURES

  • Extra safety against running dry, with the suction port above pump axis.
  • Robust single-piece barrel casing.
  • Compact single-piece lantern bracket and base.
  • Low noise with the water-filled shroud around the stages.


APPLICATIONS

  • For water supply.
  • For domestic use, for garden use and irrigation.


OPERATING CONDITIONS

  • Liquid temperature: 32 F to 95 F.
  • Ambient temperature up to 104 F.
  • Maximum permissible pressure in the pump casing: 116 psi.
  • Continuous duty.

CONSTRUCTION

  • Horizontal multi-stage close coupled pump.
  • Single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top.
  • Stages in Noryl.
  • Connections: threaded ports NPT.

MOTOR

  • 2-pole induction motor, 60 Hz (n ‹ “ 3450 rpm).
  • Three-phase 230/460 V.
  • Single-phase 115/230 V, 115 V, 230 V.
  • Capacitor inside the terminal box.
  • Insulation class F.
  • Protection IP 44.

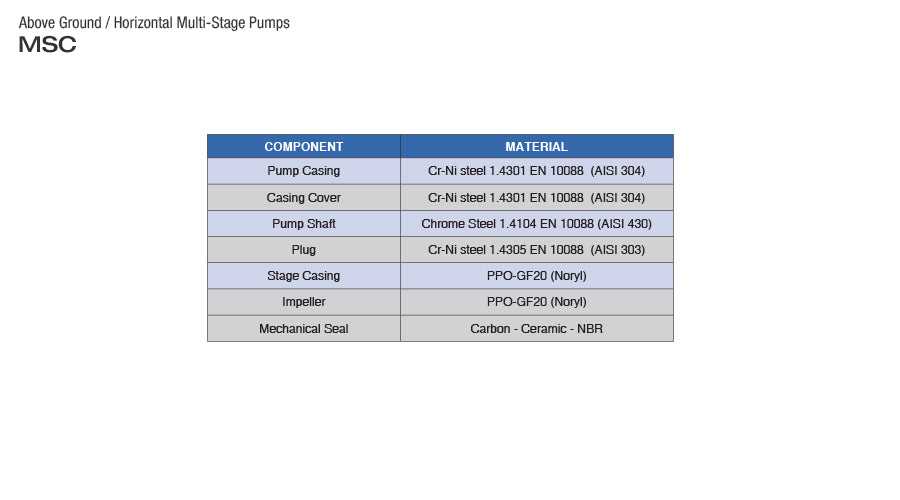

MATERIALS

  • Pump Casing: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
  • Casing Cover: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
  • Pump Shaft: Chrome Steel 1.4104 EN 10088 (AISI 430)
  • Plug: Cr-Ni steel 1.4305 EN 10088 (AISI 303)
  • Stage Casing: PPO-GF20 (Noryl)
  • Impeller: PPO-GF20 (Noryl)
  • Mechanical Seal: Carbon - Ceramic - NBR
