Vasco Variable Frequency Drive Motor or Wall Mounted Single Phase Power Supply, 3 PH Motor
by NASTEC
Save 30%
Original price
$2,173.00
Current price
$1,521.10
SKU V209MMT-09C-WMS
VASCO - Pump Controllers
VASCO is a purpose-built family of variable frequency drives, designed to control and protect pumping systems based on changing pump speed. From water supply for domestic, irrigation, commercial and industrial applications, to heating and air conditioning, from filtering to pressure washing, the VASCO range perfectly fits any new or existing application ensuring:

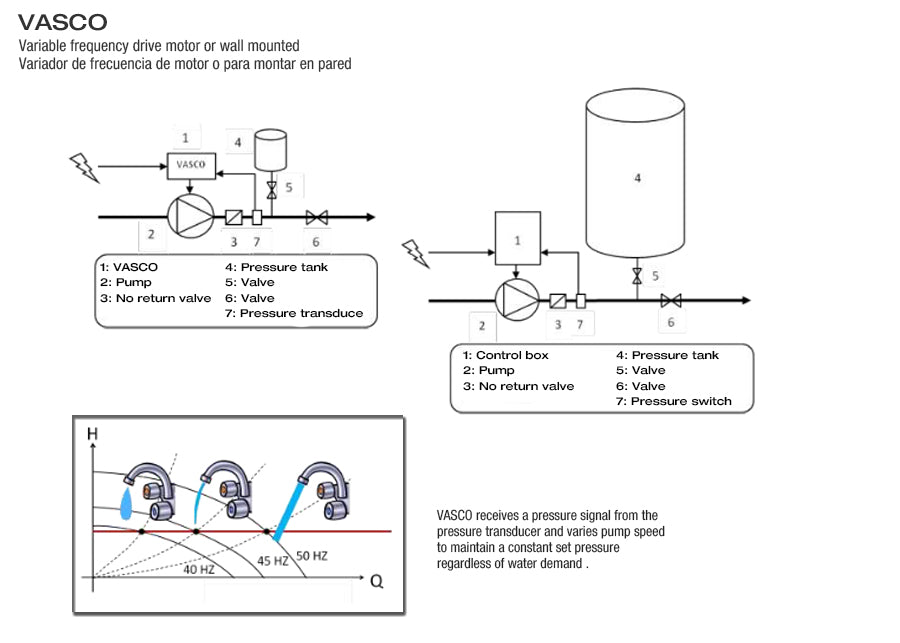

VASCO units are extremely compact and, connected to our PEARL pumps, will manage the operation of the pump to maintain a constant desired physical dimension (such as pressure, flow, temperature or other).
The pumping system runs only at the speed necessary to meet user requirements, ensuring energy savings and extending the life of the system.
Vasco also provides motor protection and monitoring , such as:

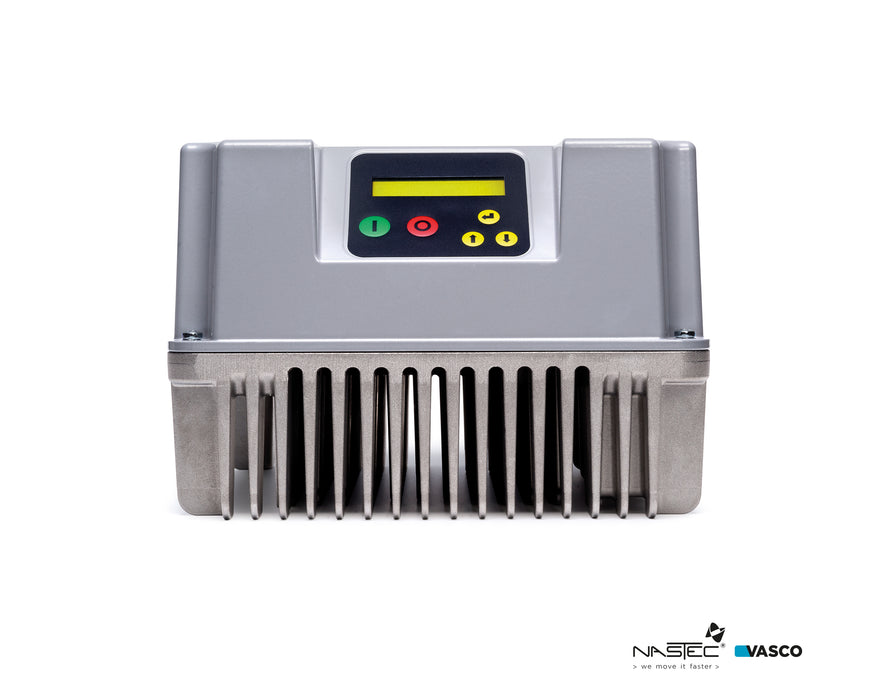

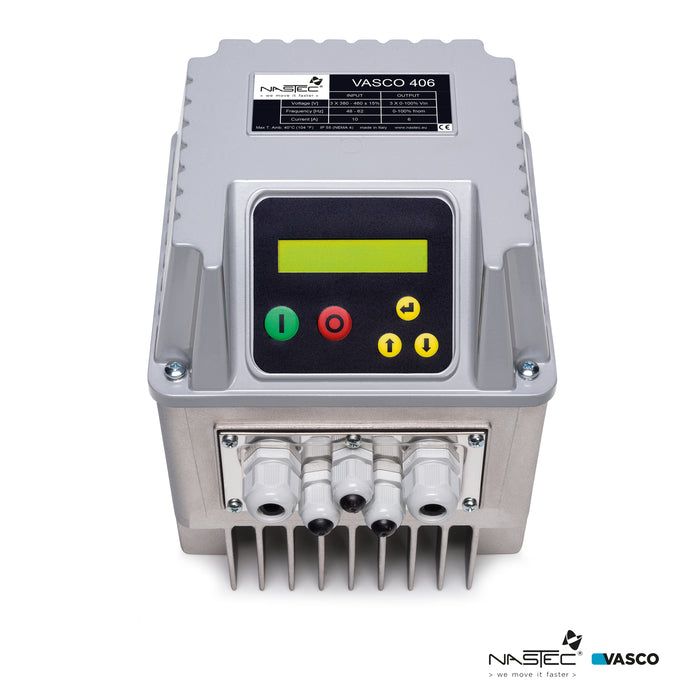

Body is constructed entirely of aluminum, making VASCO , with its compact dimensions, extremely solid, lightweight and easily cooled, adding to the unit versatility.
The degree of protection, IP55 makes it possible to install VASCO virtually anywhere, including humid and dusty environments; the liquid crystal illuminated display ensures VASCO is easy to operate and a buzzer provides an immediate indication of alarm.
VASCO can be installed directly on the cooling fan cover of the motor or directly to the wall with a supplied installation kit:
MOTOR KIT
VASCO is cooled by the motor cooling fan.
Motor kits consists of 4 special clamps to fix the VASCO to the motor fan cover.
WALL KIT
VASCO is cooled by an external cooling fan attached to the inverter radiator.
A special metal bracket is supplied for VASCO to be mounted to the wall.
SMART BLUETOOTH ® TECHNOLOGY COMMUNICATION TO YOUR WATER SYSTEM WITH NASTEC NOW APP!
Thanks to Nastec NOW app it is possible to communicate with all Nastec SMART Bluetooth ® devices in order to:
- Energy and cost saving
- Simplified installation
- Longevity of pumping system
- Greater reliability
VASCO units are extremely compact and, connected to our PEARL pumps, will manage the operation of the pump to maintain a constant desired physical dimension (such as pressure, flow, temperature or other).
The pumping system runs only at the speed necessary to meet user requirements, ensuring energy savings and extending the life of the system.
Vasco also provides motor protection and monitoring , such as:
- Protection against overload and dry running
- Integrated soft start and soft stop functions, extending the life of the system and reducing peak absorption
- Indication of input current and supply voltage
- Recording running hours and login errors and alarms reported by the system
- Vasco can control a second or third pump at constant speed DOL (DOL: Direct On Line)
- Connect to other VASCOs to get combined operation
Body is constructed entirely of aluminum, making VASCO , with its compact dimensions, extremely solid, lightweight and easily cooled, adding to the unit versatility.
The degree of protection, IP55 makes it possible to install VASCO virtually anywhere, including humid and dusty environments; the liquid crystal illuminated display ensures VASCO is easy to operate and a buzzer provides an immediate indication of alarm.
VASCO can be installed directly on the cooling fan cover of the motor or directly to the wall with a supplied installation kit:
MOTOR KIT
VASCO is cooled by the motor cooling fan.
Motor kits consists of 4 special clamps to fix the VASCO to the motor fan cover.
WALL KIT
VASCO is cooled by an external cooling fan attached to the inverter radiator.
A special metal bracket is supplied for VASCO to be mounted to the wall.
SMART BLUETOOTH ® TECHNOLOGY COMMUNICATION TO YOUR WATER SYSTEM WITH NASTEC NOW APP!
Thanks to Nastec NOW app it is possible to communicate with all Nastec SMART Bluetooth ® devices in order to:
- Remotely control a Nastec device via Wi-Fi or GSM by tethering to a nearby smartphone. Get energy consumption statistics and check the alarm log.
- Develop programs, save them in the archive, copy them to other devices and share them among multiple users.
- Create reports with the possibility of adding notes and images, and email or store them in the digital archive.
- Monitor multiple operating parameters simultaneously on the wide, high definition, colored screen of your smartphone or tablet.
