Pearl 6" Submersible Pump 6PWS90G - Pump End Only - 90 GPM

PEARL 6" SUBMERSIBLE PUMP 6PWS90G - STAINLESS STEEL AISI 304 - PUMP END ONLY - 90 GPM

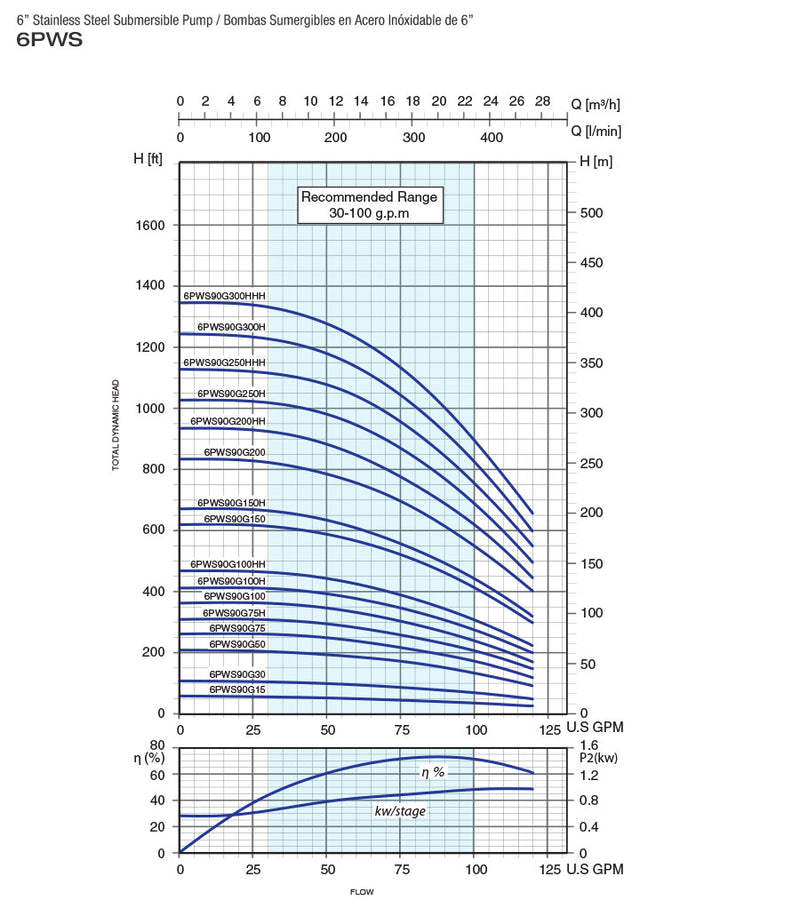

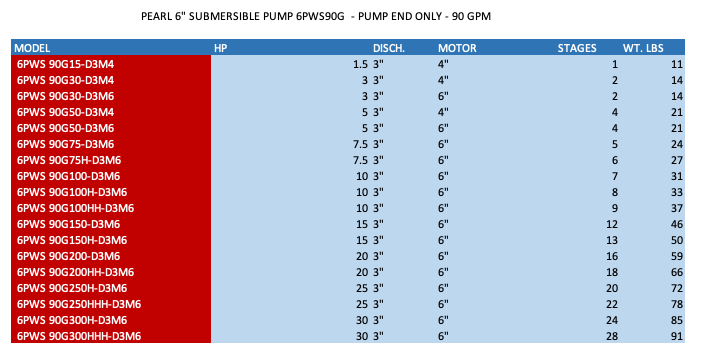

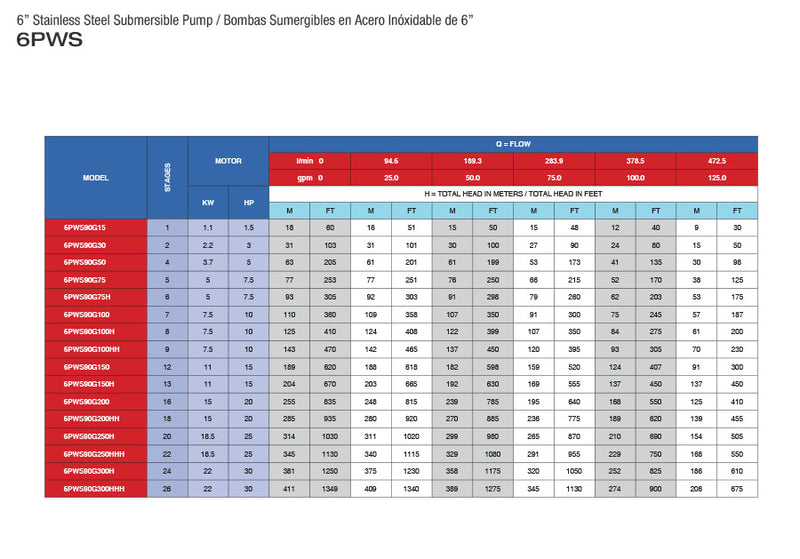

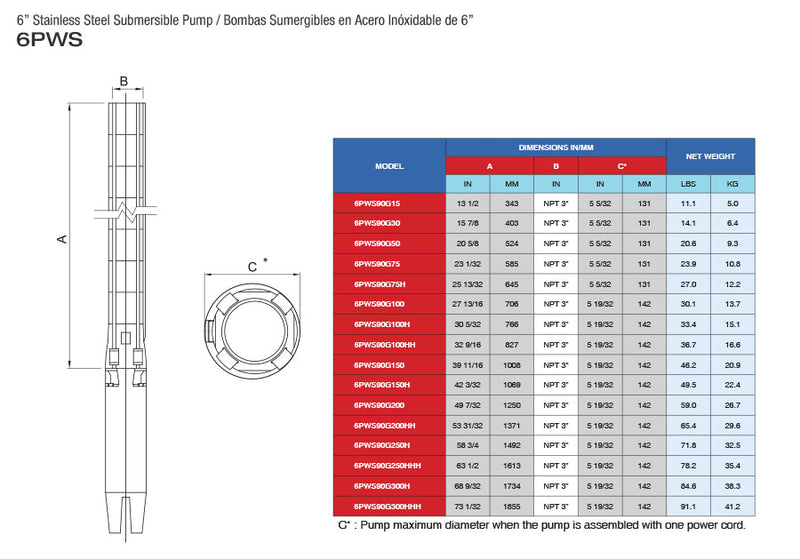

**PLEASE SEE IMAGES FOR PUMP SELECTION**

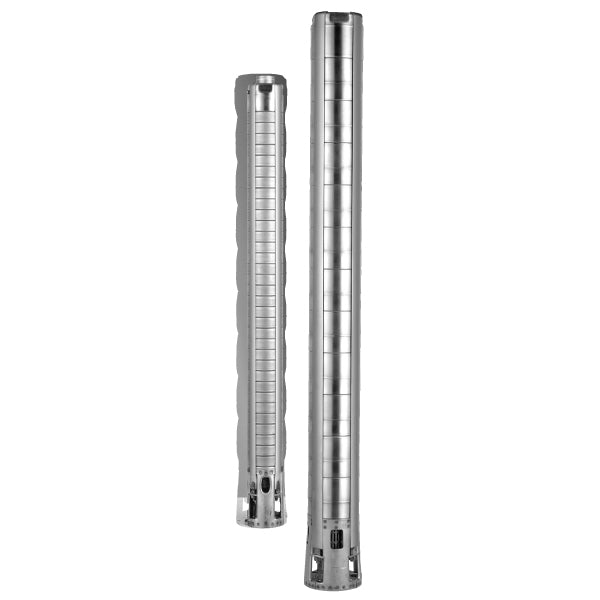

The Pearl 6PWS stainless steel submersible pumps are made of high quality 304 or 316 corrosion resistant stainless steel. Shafts are made of high strength of 431 stainless steel. The pumps are designed for efficient and dependable performance, and a long and trouble-free life. The pumps are light in weight and ruggedly constructed for heavy-duty applications.

PERFORMANCE RANGE

• Recommended range from  50 - 200  GPM.
• Head up to 1780 ft.

APPLICATIONS

• Potable water supply from deep wells
• Agricultural-Irrigation and livestock watering
• Municipal and Industrial water supply
• Pressure boosting
• Mine dewatering
• Fountains, etc.

PUMPED LIQUIDS

• Clean water and any non -abrasive liquid compatible with the material components.

OPERATING CONDITIONS

• Max. ambient temperature (Liquid): 86 Æ’ §F (30 Æ’ §C)

FEATURES

• Stainless steel construction designed and built for years of trouble free operation
• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance

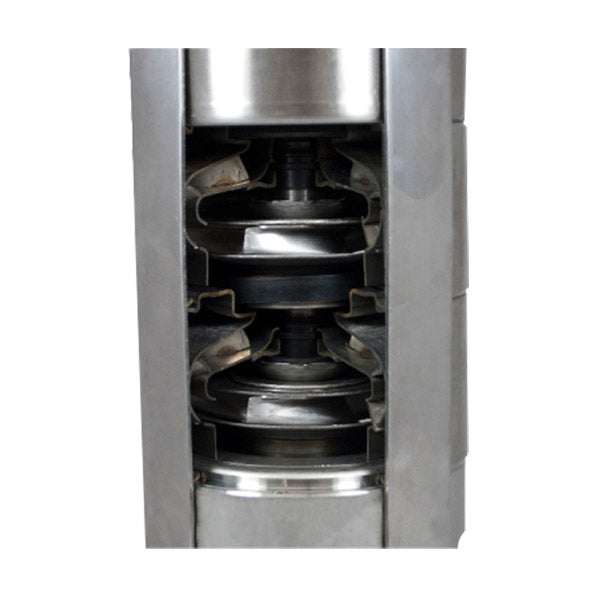

• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material
