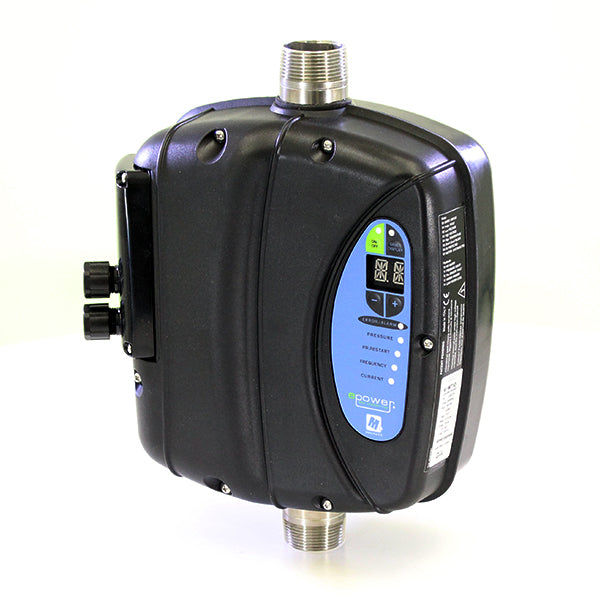

Variable Frequency Drive E-Power Hydrocontroller Model EPWMT10S-STD
by Mac 3
Save 30%
Original price
$1,278.00
Current price
$894.60
SKU EPWMT10S-STD
E-Power Water Cooled Variable Frequency Drive - Pump Controllers
New generation of variable frequency drives inline cooled by water guarantees the best performance of your controller in a compact installation.
The integrated pressure sensor eliminates the need for a pressure transducer.
IP65 Controller protection, comparable to Nema 4 Standards.
It makes basic parameters setting fast and easy however it allows the installer to optimize the system by modifying a wide range of parameters if it is needed.
WATER COOLED VARIABLE FREQUENCY DRIVE EPW STANDARD VERSION
When there is a flow variation, E-POWER keeps the pressure in your system always constant by increasing or decreasing the motor¢â¬™s frequency.
WATER COOLED VARIABLE FREQUENCY DRIVE TECHNICAL SPECIFICATIONS
WATER COOLED VARIABLE FREQUENCY DRIVETECHNICAL DATA
The integrated pressure sensor eliminates the need for a pressure transducer.
IP65 Controller protection, comparable to Nema 4 Standards.
It makes basic parameters setting fast and easy however it allows the installer to optimize the system by modifying a wide range of parameters if it is needed.
WATER COOLED VARIABLE FREQUENCY DRIVE EPW STANDARD VERSION
When there is a flow variation, E-POWER keeps the pressure in your system always constant by increasing or decreasing the motor¢â¬™s frequency.
WATER COOLED VARIABLE FREQUENCY DRIVE TECHNICAL SPECIFICATIONS
- Max. Pump Amp: - 10 Amp for EPW
- Designed to control one pump.
- Pressure tank required. Recommended capacity equal to 20% of system flow.
- Max. flow: 50gpm.
- Max. pressure setting: 108 psi.
- Input/Output: 1 ¼¢â¬ female.
- Vertical or horizontal installation.
- Outdoor installation.
- Power supply too low or too high.
- Short circuit.
- Maximum current absorbed.
- Over temperature.
- Dry running.
- Broken pipe.
- Water hammer.
- Input for external float switch.
- Output relay for extra signal or alarms.
WATER COOLED VARIABLE FREQUENCY DRIVETECHNICAL DATA
MODEL |
MAX. AMP |
POWER SUPPLY |
MOTOR |
WEIGHT |
||
VOLT |
PHASE |
VOLT |
PHASE |
|||
EPWMT10S-STD |
10 |
230 |
1 |
230 |
3 |
7.5 |
