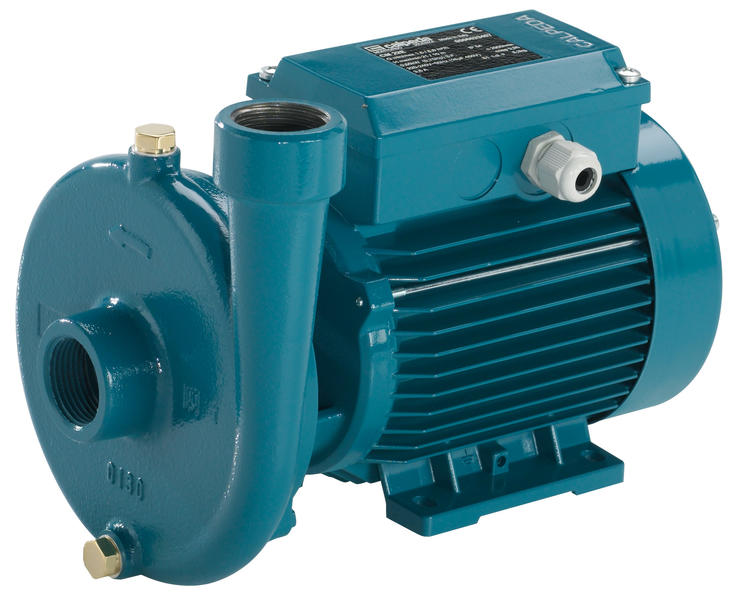

Calpeda Pump Model C41 15H36S 1.5HP 60Hz

by Calpeda
Save 30%
Original price $2,065.00
Current price $1,445.50
SKU C41 15H36S


Features

Close-coupled centrifugal pumps with open impeller.
Free-flow impeller (vortex or recessed impeller) for type C 16/1E.
Connections:threaded ports ISO 228/1. Threaded ports NPT (ANSI/ASME B1.20.1) on request
Pump casing and lantern bracket in bronze (the pumps are supplied fully painted).


BC WATER PUMP APPLICATIONS

  • For moderately dirty liquids or emulsions.
  • For industry and agriculture.

BC WATER PUMPOPERATING CONDITIONS

  • Liquid temperature from -10 °C to +90 °C.
  • Ambient temperature up to 40 °C.
  • Total suction lift up to 8 m.
  • Maximum permissible working pressure: 6 bar.
  • Maximum size of solids: 4 mm.
  • Continuous duty.

BC WATER PUMPMOTOR

  • 2-pole induction motor, 50 Hz.
  • Single-phase 110 V, 127 V, 220 V. with thermal protector up to 1.1 kW only 220V.
  • Capacitor inside the terminal box.
  • Insulation class F.
  • Protection IP 54.
  • Motor suitable for operation with a frequency converter from 1,1 kW.
  • Classification scheme IE3 for three-phase motors from 0,75 kW.
  • Constructed in accordance with:
    EN 60034-1;
    EN 60034-30-1.
    EN 60335-1,
    EN 60335-2-41.

BC WATER PUMPSPECIAL FEATURES ON REQUEST

  • Other voltages.
  • Protection IP 55.
  • Special mechanical seal
  • Higher or lower liquid or ambient temperatures.
  • Motor suitable for operation with frequency converter up to 0,75 kW.
