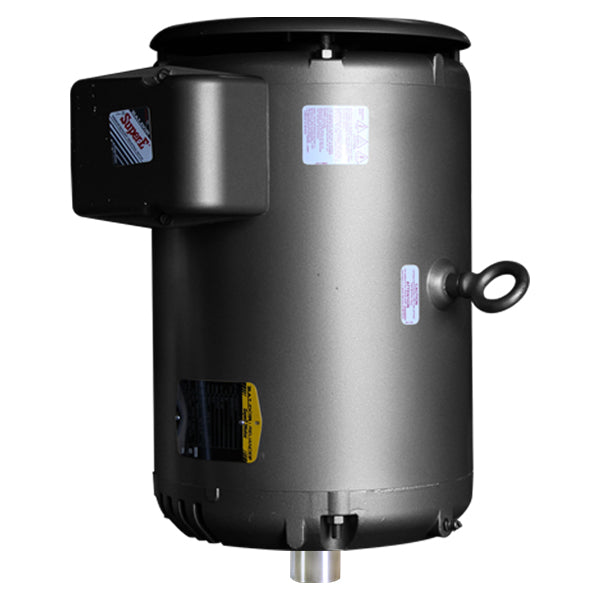

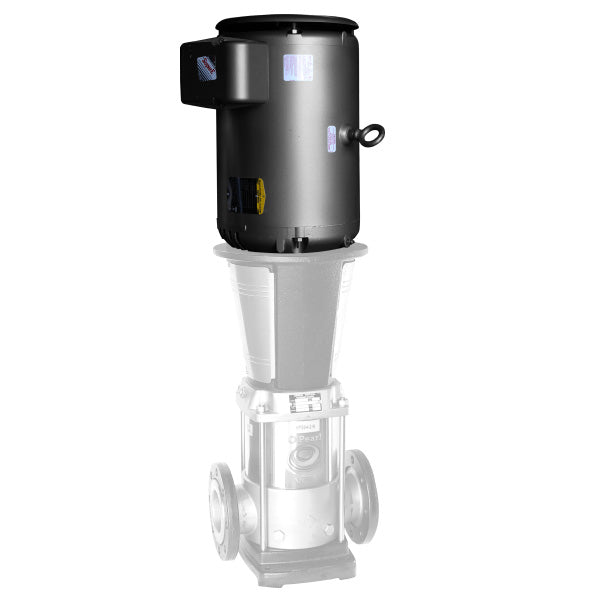

Baldor Motors for Vertical Pump NEMA - ODP - MVB Series

The Baldor Reliance Super‑E Open Drip Proof (ODP) Motor is designed for general purpose industrial applications where high efficiency and dependable performance are required in relatively clean, well‑ventilated environments. These motors meet or exceed NEMA Premium® Efficiency standards, helping reduce energy consumption and operating costs.

The Open Drip Proof (ODP) enclosure allows air to circulate freely through the motor, providing excellent heat dissipation and extended motor life. This design offers limited environmental protection and is best suited for indoor or weather‑protected installations.

Available in single‑phase or three‑phase configurations, Baldor Reliance Super‑E ODP motors come from stock in multiple mounting options, including rigid base, C‑face, and close‑coupled pump mountings, with steel‑band or cast iron frames to match application requirements.

Standard features include Class F insulation, a 1.15 Service Factor, and Exxon Polyrex EM grease for reliable bearing lubrication. The insulation system complies with NEMA MG1 Part 31.4.4.2, making these motors Inverter Ready and fully compatible with VFD (Variable Frequency Drive) applications.

Key Features

• NEMA Premium® energy‑efficient design
• Open Drip Proof (ODP) enclosure for superior cooling
• Inverter Ready / VFD compatible
• Class F insulation system
• 1.15 Service Factor for added durability
• Available in steel‑band or cast iron frames

Typical Applications

• General purpose industrial machinery
• Pumps and compressors
• Fans and blowers
• Material handling equipment
• Manufacturing and processing systems
