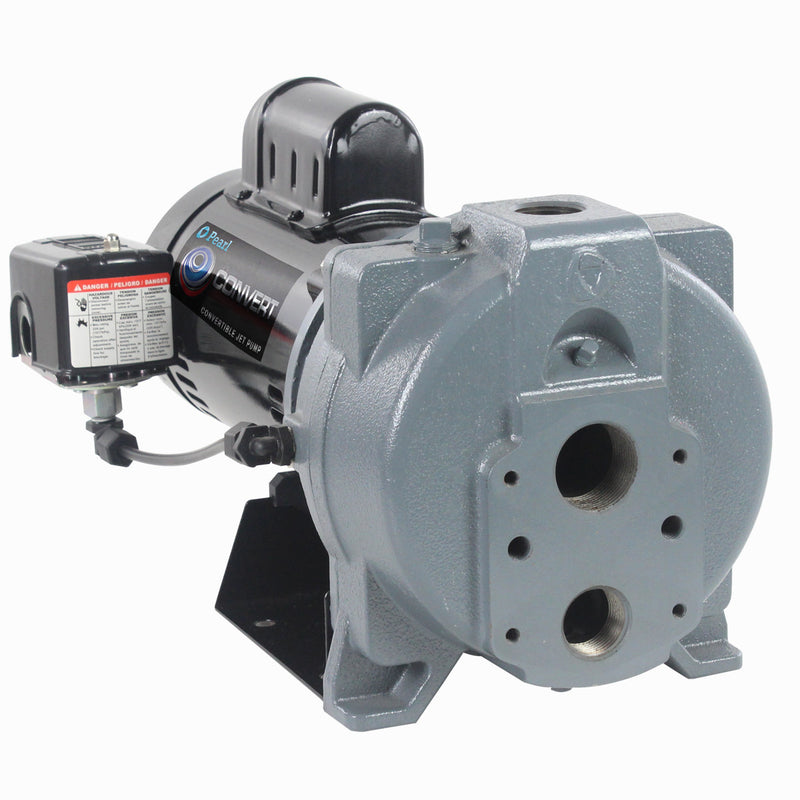

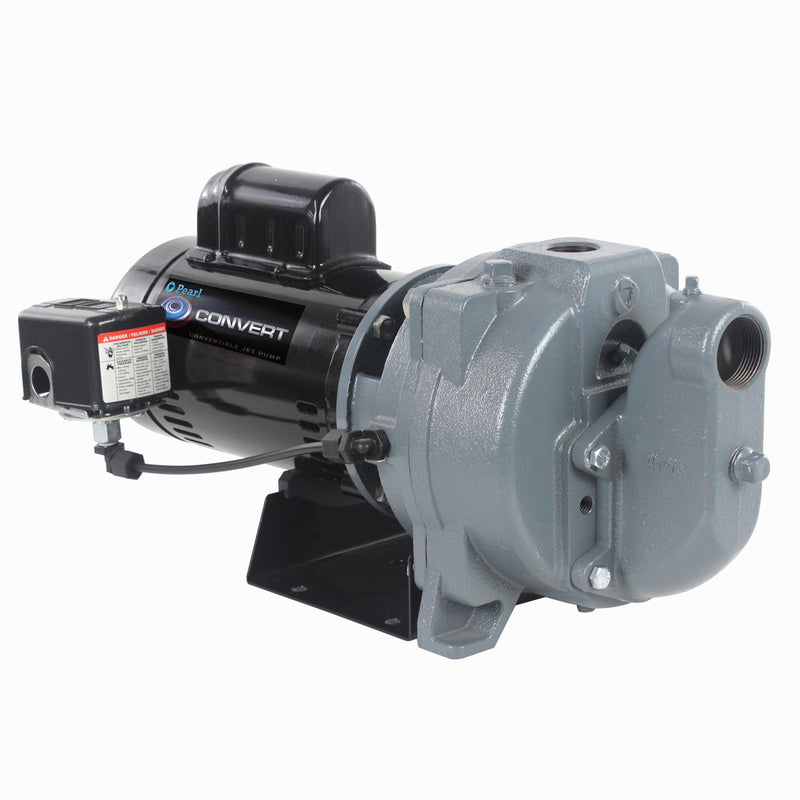

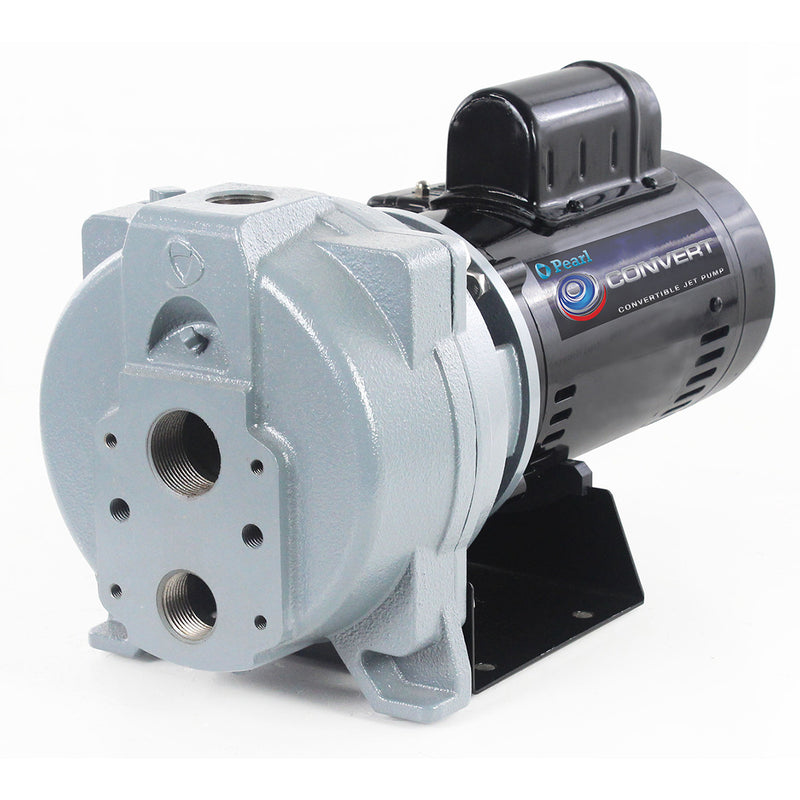

CONVERT Shallow Well / Deep Well Jet Pump
The versatility of this pump allows it to be used in different applications such as shallow or deep wells. In all its different configurations, CONVERT is a self-priming pump, which means that, after the first priming, there will be no need for the pump to be primed again.
The pump’s design and features guarantee complete customer satisfaction. Every component was carefully manufactured to assure the best performance and reliability. CONVERT’S construction is suitable for outdoor applications.
CONVERT comes equipped with a PEARL pressure switch for quick installation.
One of the biggest advantages when using CONVERT is the possibility to service the pump without removing the pipes from the adapter.
APPLICATIONS
- Domestic water supply out of a well at desirable pressure.
- Lifting water containing air or other gasses.
- Boost pressure from flooded suction.
- Garden maintenance (see operating conditions).
OPERATING CONDITIONS
- Liquid temperature: 32° F - 150° F
- Maximum working pressure: 125 PSI
- Continuous duty
CONSTRUCTION
- Closed coupled self-priming centrifugal pump
- High quality components for domestic use and irrigation if low lead requirements are guaranteed
- Connection threaded ports NPT
- Stainless steel hardware
- Pre-drilled priming port with plug
- Pre-drilled drain port with pug for maintenance
- U-shape base for pump support
MOTOR
- Nema standard ODP 56 J motor for much cooler surface temperature
- Thermal overload protection
- Capacitor start - capacitor run type motor for the ½ - ¾ hp versions
- Permanent Split Capacitor (PSC) without centrifugal switch for the 1 - 1.5 hp versions
- NSK Bearings for a much longer life span
- All copper winding
- Class F Dupont Nomex Insulation System, cCSAus approved
- Single phase 0.5 - 0.75 - 1 - 1.5 hp, 115/230 V
- Easy voltage conversion
- Maximum ambient temperature admitted: 40 °C (104 °F)
- Assembled with Pearl Pressure Switch
ACCESSORIES
The following accessories are necessary for proper jet pump operation:
- Shallow Well Package. Includes shallow well adapter, venturi and nozzle kits.
- Twin Pipe Deep Well Package. Includes the 4” jet body, venturi with nozzle kits, and the foot valve.
- Single Pipe Packer. Includes packer body, venturi, and nozzle kits, and the foot valve.
Note: The single packer also needs a well adapter.
