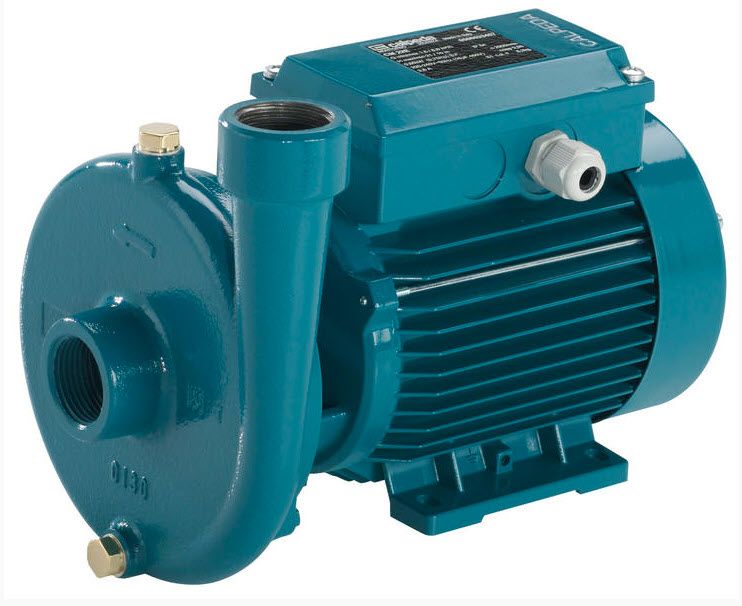

Calpeda CM 22E Close-coupled centrifugal pumps with open impeller

by Calpeda
Sold out
Original price $1,442.29
Current price $1,009.60
SKU C22E 07C17S
C WATER PUMP TECHNICAL INFORMATION:

MODEL

HP

VOLT

PHASE

MAX. AMP

SUCT

DISCH

SPECIAL FEATURE

WT. LBS

C22E 07C17S

0.75

230

1

4.3

1”

1”

50/60 Hz Tropicalized Motor

22



Calpeda CM 22E  Applications

  • Marine Air Conditioning Water Pumps
  • For moderately dirty liquids or emulsions.
  • For industry and agriculture.

Calpeda Water Pump CM 22E  Construction

  • Close-coupled centrifugal pumps with open impeller.
  • Free-flow impeller (vortex or recessed impeller) for type C 16/1E.
  • Connections: threaded ports ISO 228/1.
  • threaded ports NPT (ANSI/ASME B1.20.1) on request

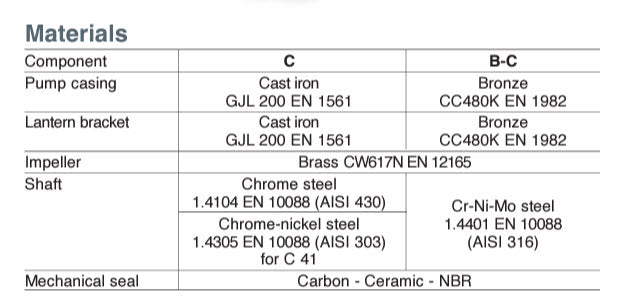

  • C: version with pump casing and lantern bracket in cast iron.
  • B-C: version with pump casing and lantern bracket in bronze
  • (the pumps are supplied fully painted).

    Calpeda CM 22E  Operating conditions

    • Liquid temperature from -10 °C to +90 °C.
    • Ambient temperature up to 40 °C.
    • Total suction lift up to 8 m.
    • Maximum permissible working pressure: 6 bar.
    • Maximum size of solids: 4 mm.
    • Continuous duty.

    Calpeda CM 22E  Motor

    • 2-pole induction motor, 60 Hz ( 3450 rpm).
    • C: three-phase 220/380 V, 220/440 V,
    • CM: single-phase 110 V, 127 V, 220 V.
    • with thermal protector up to 1.1 kW only 220V.
    • Capacitor inside the terminal box.
    • Insulation class F.
    • Protection IP 54.
    • Motor suitable for operation with a frequency converter from 1,1 kW.
    • Classification scheme IE3 for three-phase motors from 0,75 kW.
    • Constructed in accordance with: EN 60034-1; EN 60034-30-1.
    • EN 60335-1, EN 60335-2-41.

    Special features on request
    - Other voltages.
    - Protection IP 55.
    - Special mechanical seal
    - Higher or lower liquid or ambient temperatures.
    - Motor suitable for operation with frequency converter up to 0,75 kW
