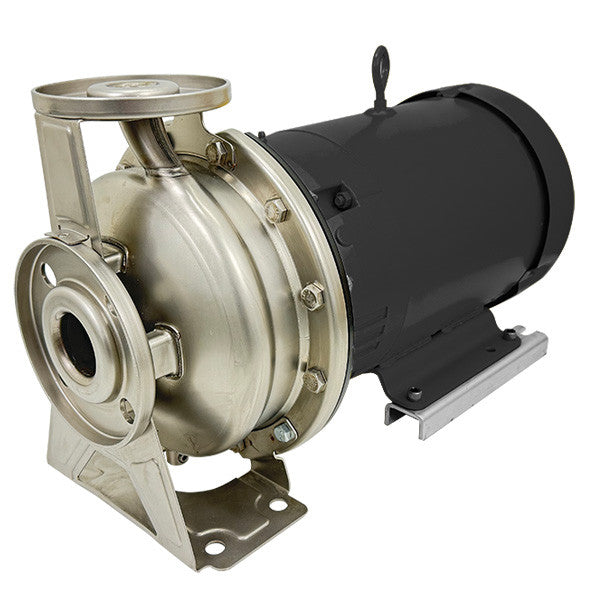

PEARL by EBARA Centrifugal Pump - CSPEF

Product Specifications

CSPEF is an end-suction centrifugal pump. The water pump was designed taking into consideration the features needed to guarantee complete customer satisfaction, including:

• Stainless steel end components – high quality;corrosion resistance
• Versatile mounting – can be installed horizontally or vertically
• Back pullout construction – allows for assemblyand overhaul of the impeller and seal withoutdistorting suction and discharge connections
• Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
• High efficiency – lowers operating costs
• High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation
• Available as a complete pump or as a kit


APPLICATIONS

• Pressure Boosting
• Plant Services
• Irrigation
• Water Supply Systems
• Liquid Transfer
• Ultrapure Water Systems
• Water Reclamation and Treatment
• Temperature Control
• Air Conditioning Systems


OPERATING CONDITIONS

• Suction Size: 2” to 3”
• Discharge Size: 1 1/4” - 2 1/2”
• Power Range: 1 to 30 hp
• Capacity: 5 to 633 gpm
• Head: 9 to 282 feet
• Liquid: Clean Water, Glycol, Dielectric Fluid

PUMP CONSTRUCTION

• Flanged Ports
• 304L Stainless Steel Casing
• 304L Stainless Steel Impeller (closed type)
• 304L Stainless Steel Shaft Sleeve/Coupling
• Cast Iron Bracket
• Type 21 Carbon/Ceramic/Viton Mechanical Seal


MOTOR

• 1 – 30 HP
• JM frame
• Motor flange and shaft designed to support pump unit
• Oversized ball bearing with locked DE construction to minimize endplay
• Dynamically balanced rotor to reduce noise and increase bearing life
• Inverter-Ready
• Motor enclosures available in both enclosed and open
• 1.15 SF, Class F Insulation
• Corrosion resistant finish
• Maximum ambient temperature 40 °C (104 °F)
