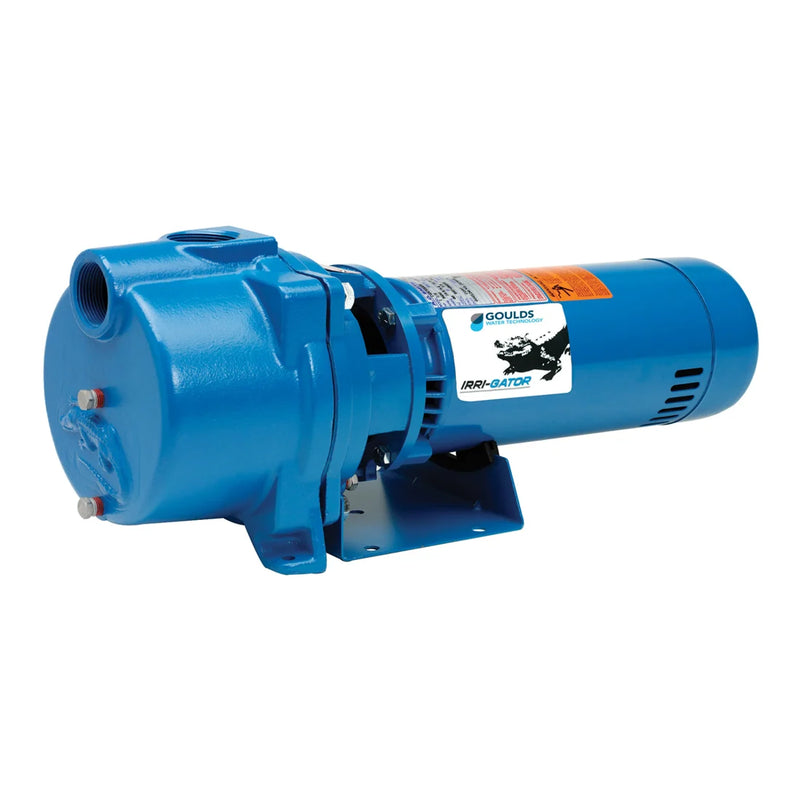

Goulds GT IRRI-GATOR Self-Priming Centrifugal Pump – 3/4 to 3 HP, 44–105 GPM

Goulds GT IRRI-GATOR Self-Priming Centrifugal Pump – 3/4 to 3 HP

The Goulds GT IRRI-GATOR Series is a self-priming centrifugal pump designed for irrigation, water transfer, lawn sprinkling, HVAC systems, and de-watering applications.

Available from 3/4 HP to 3 HP, the GT Series delivers flow rates from 44 to 105 GPM and features a durable cast iron construction with a back pull-out design for easier maintenance.

Available Models

• GT07 – 3/4 HP – 44 GPM – 115/230V
• GT10 – 1 HP – 53 GPM – 115/230V
• GT15 – 1-1/2 HP – 63 GPM – 115/230V
• GT20 – 2 HP – 86 GPM – 230V
• GT30 – 3 HP – 105 GPM – 230V

All models are single-phase, 60 Hz and feature 1-1/2" NPT suction and discharge connections.

Key Features

• Self-priming design with re-priming capability up to 25 ft suction lift
• Back pull-out design for easier servicing without disturbing piping
• Two-compartment motor for convenient access to wiring and components
• FDA-compliant, glass-filled Noryl impeller
• Bolt-down diffuser for positive impeller alignment
• Cast iron casing with corrosion-resistant electro-coat finish
• Mechanical seal with carbon/ceramic faces and stainless steel components
• Diaphragm helps prevent the mechanical seal from running dry
• Stainless steel shaft
• Built-in overload protection with automatic reset
• Designed for continuous operation
• NEMA open drip-proof motor

Applications

• Lawn sprinkling
• Irrigation
• Air conditioning systems
• Heat pumps
• Water transfer
• De-watering
