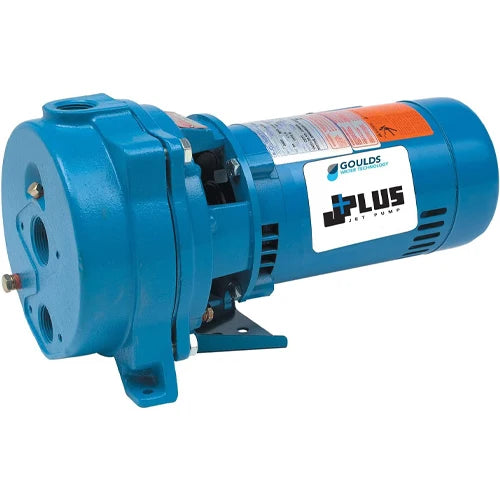

Goulds J+ Series Convertible Jet Pump – 1/2 to 1-1/2 HP, 115/230V

Goulds J+ Convertible Jet Pump – 1/2 to 1-1/2 HP

The Goulds J+ Series Convertible Jet Pump is designed for both shallow and deep well applications when used with the appropriate Goulds Water Technology fittings. Available in four horsepower options, this pump provides a reliable solution for residential, farm, cottage, and booster applications.

Available Models

• J5 – 1/2 HP
• J7 – 3/4 HP
• J10 – 1 HP
• J15 – 1-1/2 HP

All models operate on 115/230V, single-phase, 60 Hz power and feature a durable cast iron construction.

Key Features

• Convertible design for shallow or deep well applications
• Back pull-out design for easier servicing without disturbing piping
• Corrosion- and abrasion-resistant glass-filled Noryl impeller
• Stainless steel shaft and diffuser wear ring
• Protected mechanical seal designed to prevent dry running
• Self-repriming capability after initial priming
• Built-in overload protection with automatic reset
• Designed for continuous operation
• Corrosion-resistant electro-coat finish
• Pressure switch preset at 30–50 PSI

Connections

• Suction: 1-1/4" NPT
• Discharge: 1" NPT

Applications

• Homes
• Farms
• Cottages
• Booster service

Installation Requirements

Additional components may be required depending on the installation.

For shallow well applications, a compatible shallow well package is required.

For deep well applications, a twin-pipe or packer-style deep well jet assembly must be purchased separately. Deep well installations also require a JDW fitting package or AV22KIT for the pressure switch connection.
