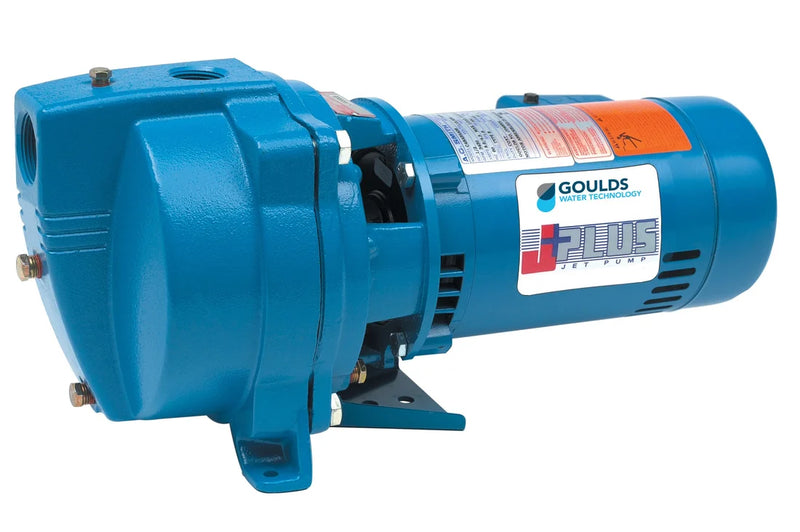

Goulds J5S Shallow Well Jet Pump – 1/2 HP, 115/230V, JS+ Series

Goulds JS+ Shallow Well Jet Pump

Compact shallow well jet pump with an integral shallow well adapter built into the casing, eliminating the need for a separate adapter.

Includes

• Pump with integral shallow well jet
• Nozzle – Part #AN017
• Venturi – Part #AD3332
• Pressure switch – Part #AS4
• Pressure switch tubing
• Motor

Key Features

• Back pull-out design for easier servicing without disturbing piping
• Two-compartment motor for easy access to wiring and replaceable components
• Nozzle clean-out plug for easier maintenance
• Corrosion-resistant engineered plastic tubing and fittings
• Protected mechanical seal designed to prevent dry running
• FDA-compliant, glass-filled Noryl impeller
• Stainless steel shaft and diffuser wear ring
• Self-repriming capability after initial priming
• Built-in overload protection with automatic reset
• Designed for continuous operation
• Pressure switch preset: 30–50 PSI
• Clockwise rotation when viewed from motor end

Applications

• Homes
• Cottages
• Shallow well systems
• Booster service

Disclaimer: For additional information, contact us at sales@pumpstoponline.com or through our Live Chat!
