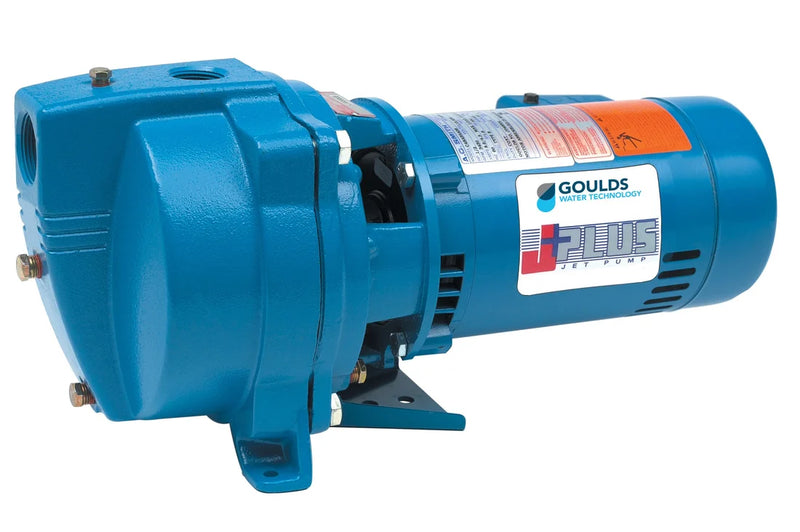

Goulds J7S Shallow Well Jet Pump – 3/4 HP, 115/230V, JS+ Series

Goulds J+ Convertible Jet Pump

Versatile convertible jet pump designed for shallow or deep well applications when used with the appropriate Goulds fittings. Its back pull-out design allows easier servicing without disturbing the piping.

Includes

• Pump and motor
• Pressure switch – Part #AS4
• Tubing and fittings

Installation Note

For new deep well installations, a compatible deep well jet assembly must be purchased separately in either twin-pipe or packer style.

A JDW fitting package or AV22KIT is also required for the pressure switch connection.

Key Features

• Back pull-out design for easier maintenance
• Two-compartment motor for access to wiring and replaceable components
• Nozzle clean-out plug
• Corrosion-resistant plastic tubing and fittings
• Hand-tight O-ring fittings for reliable sealing
• FDA-compliant, glass-filled Noryl impeller
• Lexan diffuser with stainless steel wear ring
• Designed for continuous operation
• Corrosion-resistant electro-coat finish
• Protected mechanical seal designed to prevent dry running
• Self-repriming capability after initial priming
• Built-in overload protection with automatic reset
• Stainless steel shaft
• Clockwise rotation when viewed from motor end

Applications

• Homes
• Farms
• Cottages
• Booster service
