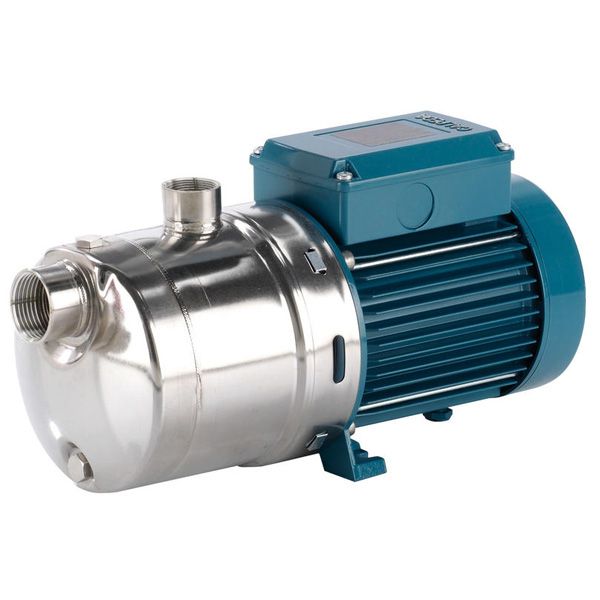

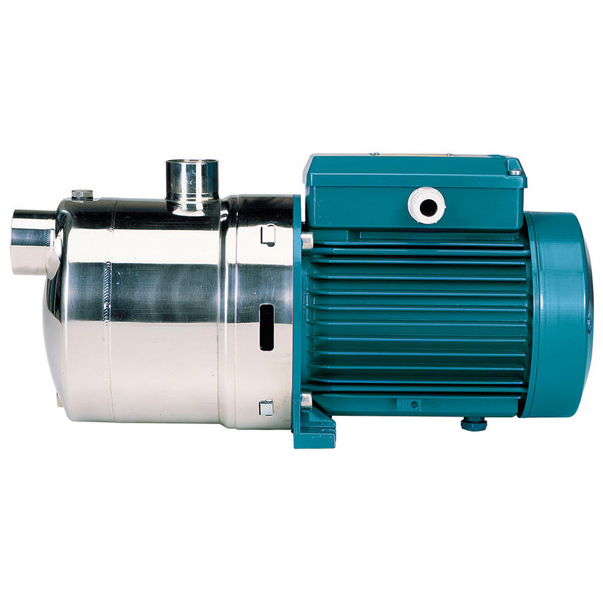

Calpeda MXH series - Horizontal Multistage Water Pumps - Pearl by Calpeda

by Calpeda
Save 30%
Original price $1,097.00
Current price $767.90
SKU MXH20 05F16S
  • Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel.
  • Compact and robust construction, without protruding flange and with single-piece lantern bracket and base.
  • Single-piece barrel casing, with front suction port above pump axis and radial delivery at top.
  • Filling and draining plugs on the middle of the pump, accessible from any side (like terminal box).
  • Connections: threaded ports GAS

MXH - Pumps Series Models & SKUs

USA SKU

CALPEDA MODEL

MXH20 05F16S

MXHM 202-60

MXH30 15C16S

MXHM 404-60

MXH30 15H36S

MXH 404-60

MXH50 20H36S

MXH 803-60

MXH50 30H36S

MXH 804-60

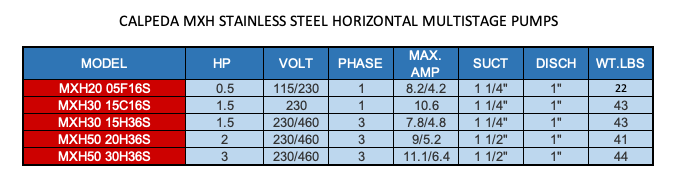

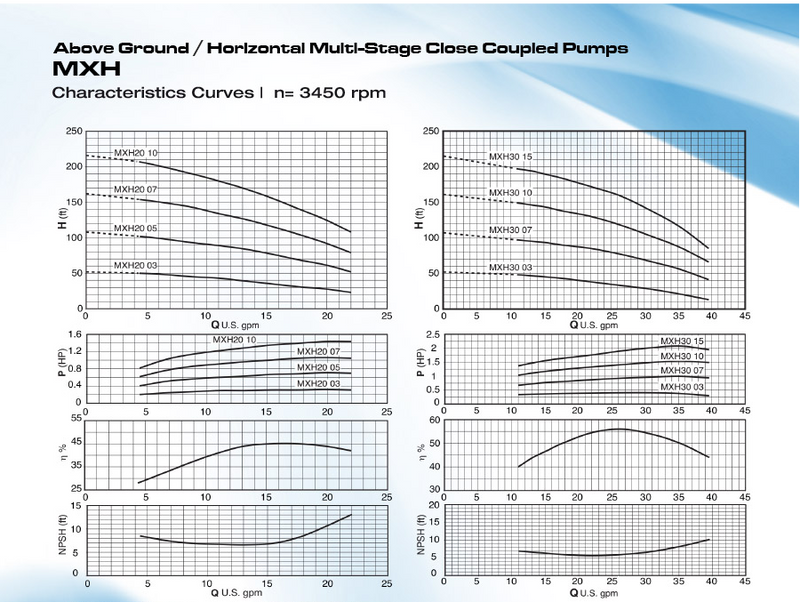

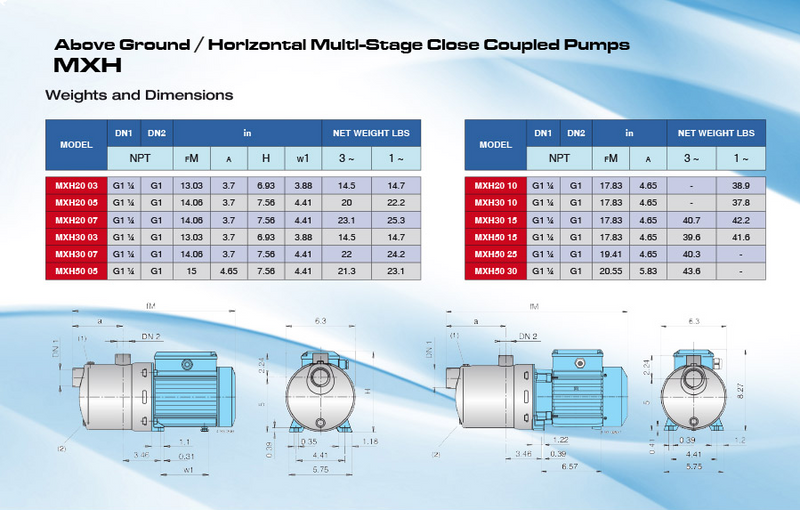

* FOR SELECTION PLEASE SEE IMAGES*


Calpeda MXH series Multi-stage Pumps Applications:
  • For water supply.
  • For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal material, on request).
  • Universal pump, for domestic use, civil and industrial applications, for garden use, and irrigation.

Calpeda MXH series Multi-stage Pumps Operating Conditions:
  • Liquid temperature: 5 °F to 230 °F
  • Ambient temperature up to 104 °C.
  • Maximum permissible in the pump casing: 116 psi.
  • Continuous duty.

Calpeda MXH series Multi-stage Pumps Motor Specifications:
  • 2-pole induction motor, 60 Hz (n = 3450 rpm).
  • Three-phase 220/460 V.
  • Single-phase 115/230 V, 115 V, 230 V.
  • Capacitor inside the terminal box.
  • Insulation class F.
  • Protection IP 54.

Calpeda MXH series Multi-stage Pumps Components and Materials:
  • Pump casing: Chrome-nickel steel AISI 304
  • Stage casing: Chrome-nickel steel AISI 304
  • Wear ring: PTFE
  • Impeller: Chrome-nickel steel AISI 304
  • Casing cover: Chrome-nickel steel AISI 304
  • Spacer sleeve: Chrome-nickel steel AISI 304
  • Pump Shaft: Chrome-nickel steel AISI 304
  • Plug: Chrome-nickel steel AISI 304
  • Mechanical seal accord: Ceramic alumina, carbon, EPDM

Calpeda MXH series Multi-stage Pumps Special Feature Available on Request
  • Other voltages.
  • Protection IP 55.
  • Special mechanical seal.
  • Seal rings in FPM.
  • Higher or lower liquid or ambient temperatures.

FOR ADDITIONAL INFORMATION CONTACT US TO:     sales@pumpstoponline.com
