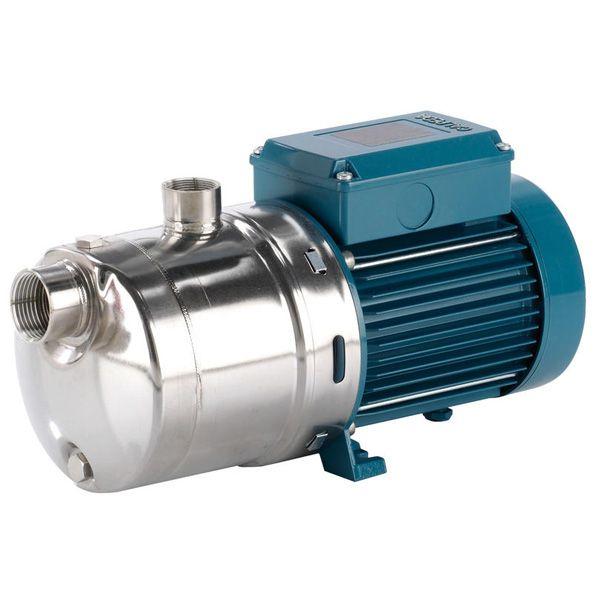

CALPEDA MXH SERIES - STAINLESS STEEL HORIZONTAL MULTISTAGE PUMPS

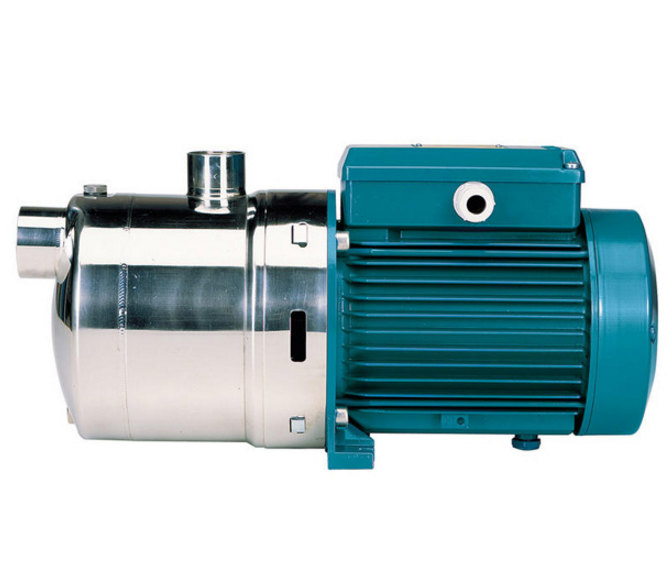

Calpeda MXHL 403-60/C DRW 90.428 V.230/460/60 DOUBLE SEALED BEARINGS FULL SS316
Calpeda MXHL 403-60/C DRW 90.428 V.230/460/60 DOUBLE SEALED BEARINGS FULL SS316
CALPEDA MXH SERIES - STAINLESS STEEL HORIZONTAL MULTISTAGE PUMPS

Calpeda MXHL 403-60/C DRW 90.428 V.230/460/60 DOUBLE SEALED BEARINGS FULL SS316

by Calpeda
SKU MXHL30 10H36D
Save 25% Save 25%
$3,006.00
$3,006.00 - $3,006.00
$3,006.00
$2,254.00
$2,254.00 - $2,254.00
$2,254.00

Features

  • Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel.
  • Compact and robust construction, without protruding flange and with single-piece lantern bracket and base.
  • Single-piece barrel casing, with front suction port above pump axis and radial delivery at top.
  • Filling and draining plugs on the middle of the pump, accessible from any side (like terminal box).
  • Connections: threaded ports ISO 228/1

Calpeda MXHL series Multi-stage Pumps Applications:
  • Marine water pumps applications (AC and freshwater)
  • For water supply.
  • For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal material, on request).
  • Universal pump, for domestic use, civil and industrial applications, garden use, and irrigation.

Calpeda MXHL series Multi-stage Pumps Operating Conditions:
  • Liquid temperature: 5 F to 230 F
  • Ambient temperature up to 104 C.
  • Maximum permissible in the pump casing: 116 psi.
  • Continuous duty.

Calpeda MXHL series Multi-stage Pumps Motor Specifications:
  • 2-pole induction motor, 60 Hz (n = 3450 rpm).
  • Three-phase 230/460 V
  • Insulation class F.
  • Protection IP 54.

Calpeda MXHL series Multi-stage Pumps Components and Materials:
  • Pump casing: Chrome-nickel steel AISI 316
  • Stage casing: Chrome-nickel steel AISI 316
  • Wear ring: VITON
  • Impeller: Chrome-nickel steel AISI 316
  • Casing cover: Chrome-nickel steel AISI 316
  • Spacer sleeve: Chrome-nickel steel AISI 316
  • Pump Shaft: Chrome-nickel steel AISI 316
  • Plug: Chrome-nickel steel AISI 316
  • Mechanical seal accord: Ceramic alumina, carbon, VITON

Calpeda MXHL series Multi-stage Pumps Special Feature Available on Request
  • Other voltages.
  • Protection IP 55.
  • Special mechanical seal.
  • Seal rings in FPM.
  • Higher or lower liquid or ambient temperatures.

Disclaimer:for additional information contact us at sales@pumpstoponline.com
