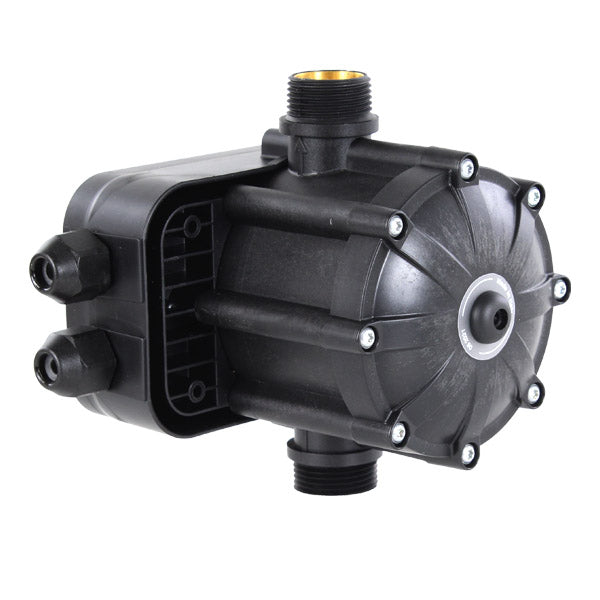

Pearl Best Boost PCBB - Electronic Flow Controller - Boosting Income Pressure
by Pearl
Save 30%
Original price
$348.00
Current price
$243.60
SKU PCBB 16F16S
BEST BOOST start and stop the water pump according to the users needs. It monitors the water pressure and flow that runs through it and protects the pumps against dangerous working conditions like dry running.
APPLICATIONS
- Boosting Incoming Pressure from the City
- Irrigation
- Water Treatment
- Filtration
FEATURES
- Constant Flow Solution
- Starts and Stops based on Demand
- Dual Voltage
- UL Listed
- Outdoors use (IP65)
- Automatic Restart*
- Anti-Jamming Function*
OTHER BENEFITS
- Easy Installation
- Reduced dimensions
- Constant flow
- No Maintenance
- No need to install pressure tanks
- Can be installed on surface or submersible pumps
TECHNICAL DATA
MODEL |
VOLTAGE |
PH |
MAX. AMP. |
SUCT. |
DISCH. |
PCBB 16F16 |
115/230 |
1 |
16 |
1" |
1¢â¬ |
*AUTOMATIC RESTART.In case of stopping due to a water shortage, the device will automatically make 10 double attempts to restart over the 24 hours following the failure, each lasting approximately 5 seconds to allow the pump and the system to reload if possible. The user can try to restart the device at any time by pressing the Restart button. If for any reason the pump remains idle for 24 consecutive hours, the device will start the pump for about 5 seconds.
* ANTI-JAMMING FUNCTION. Pump protection against dry running with automatic reset. Equipped with automatic restart* in case of failure and anti-jamming* function.
