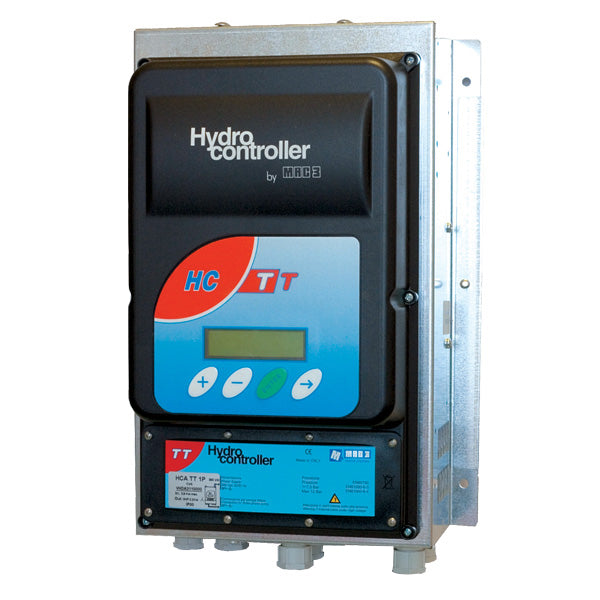

Hydrocontroller MAC3, Air or Water Cooled Advanced
VARIABLE FREQUENCY DRIVE AIR OR WATER COOLED
**Disclaimer: image is for AIR CONTROLLER. **
**PLEASE SEE IMAGES FOR SELECTION **
New generation of variable frequency drives designed for wall mounting cooled by air guarantees the best performance of your controller in a compact installation.
- The high quality transducer guarantees the perfect operation of the system.
- Controller protection designed for indoor installation.
- Three levels of programming (quick, maintenance and advanced) makes basic parameters setting fast and easy however it allows the installer to optimize the system by modifying a wide range of parameters if it is needed.
- It keeps constant pressure in your system by changing the motor’s frequency, therefore it is the perfect solution for building boosting systems with multiple pumps.

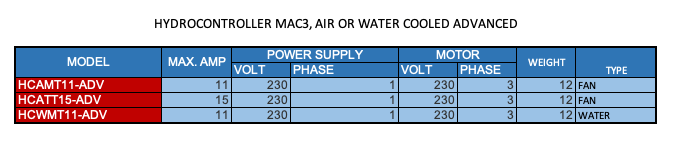

• HCAMT-ADV: Power Supply 230V/1PH - Pump Motor 230V/3PH
• HCAMM-ADV: Power Supply 230V/1PH - Pump Motor 230V/1PH
• HCATT-ADV: Power Supply 230V/3PH - Pump Motor 230V/3PH
BASIC TYPE OF PROTECTION
• Power supply too low or too high
• Short circuit
• Maximum current absorbed
• Over temperature
• Dry running
• Broken pipe
• Water hammer
• Input for external float switch
• Output relay for additional controllers or alarms
• Able to work up to 8 controllers synchronized
• Pump alternation insure a balanced used of all of all pumps in the system
• Damage recognition: if one controller fails, the next controller assumes the system control
• Software preset for multiple installations
if you need any help please contact us to firstname.lastname@example.org
