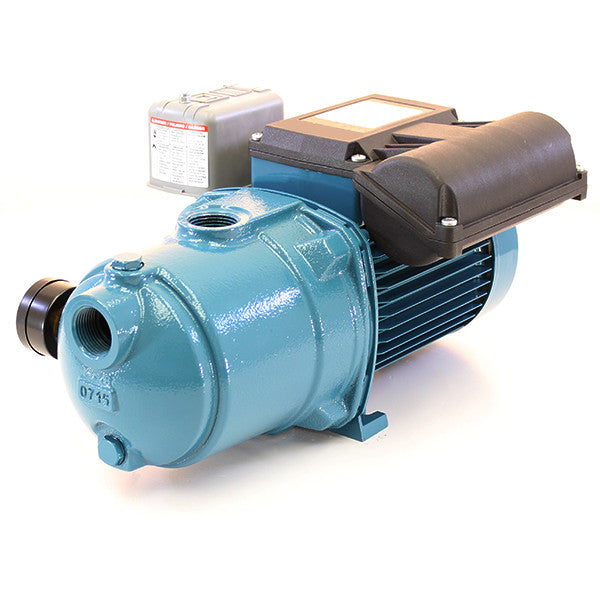

Pearl Cast Iron Irrigation Water Pump Shallow Well Self Priming JET Pump 1HP -JCC Moldels
by Pearl
Save 35%
Original price
$933.00
Current price
$609.00
SKU JCC 10F16P
PEARL Shallow Well Irrigation Jet Pump (Cast Iron)

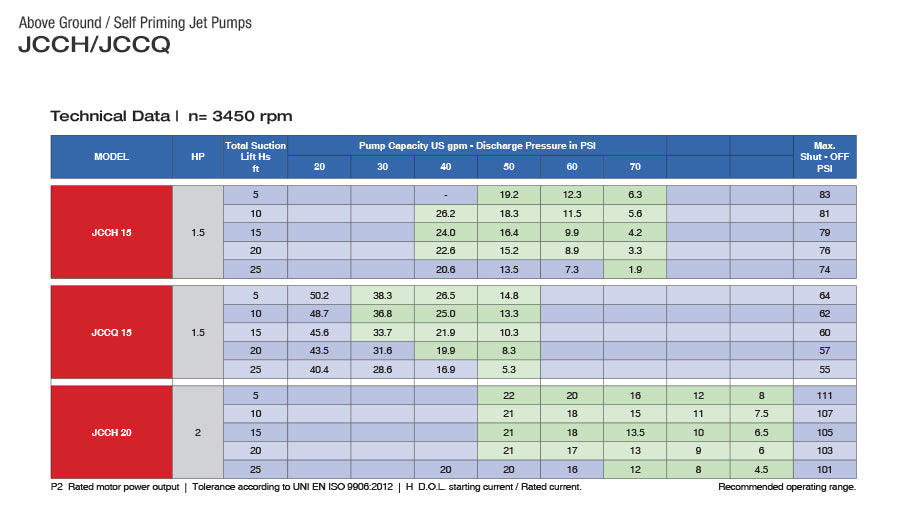

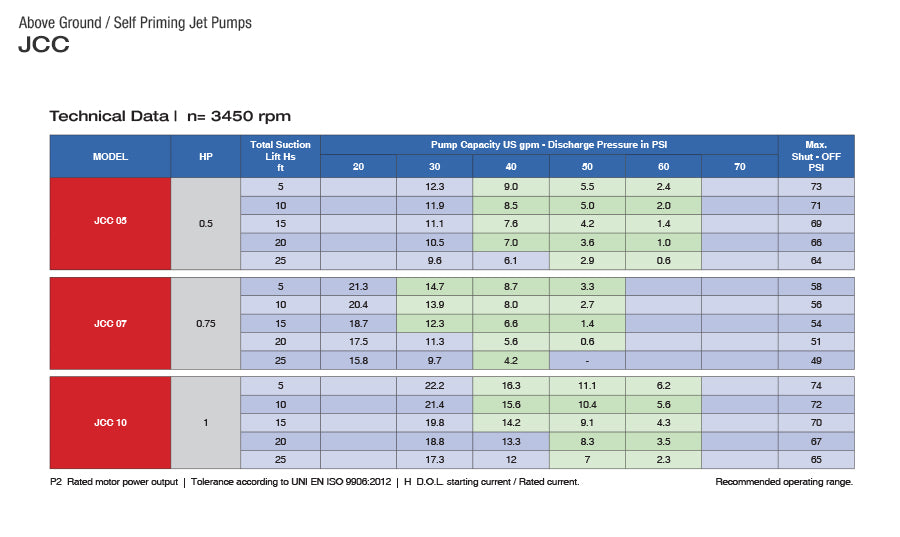

**PLEASE SEE IMAGES FOR PUMP SELECTION**
FEATURES
An exclusive diffuser design with a flow control device provides for compact construction, fast self-priming capability, and low noise.
Reliable with new design features the JCC is more robust and forgiving when temporary abnormal operating conditions may exist.
The JCC is smaller than conventional pumps of a similar type, allowing for installation in restricted spaces and providing for easier retrofit applications.
Fast air evacuation reduces the risk of air pockets developing at the mechanical seal preventing the danger of seal failure due to a lack of flushing and cooling.

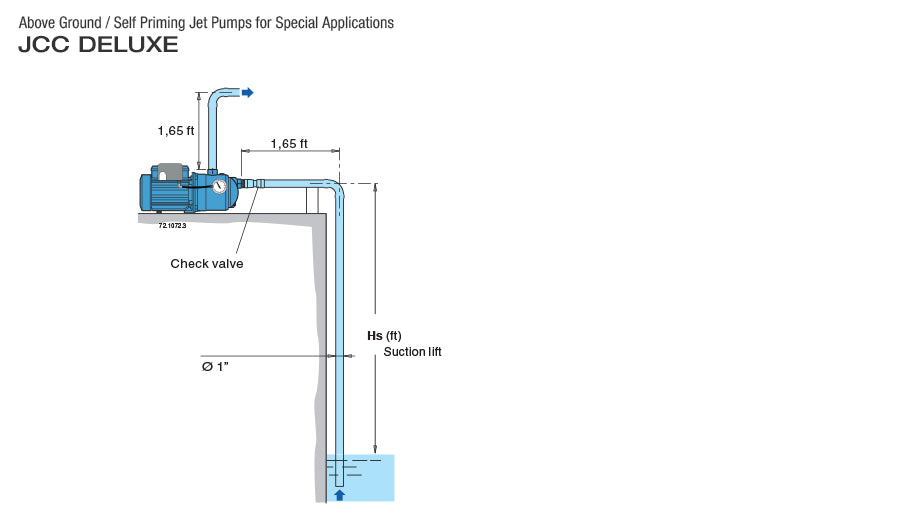

The JCC is capable of lifting water from depths of 29 ft in less than 3 minutes, offers new possibilities on suction lift applications, and provides better trouble-free service on normal shallow-well suction lift duties, also with a long suction pipe above the water level.
The new diffuser and flow control device guides the fluid from the impeller into the central part of the pump casing, reducing turbulence and velocity, with effective use of the surrounding liquid in dampening the noise of flow.
APPLICATIONS
An exclusive diffuser design with a flow control device provides for compact construction, fast self-priming capability, and low noise.
Reliable with new design features the JCC is more robust and forgiving when temporary abnormal operating conditions may exist.
The JCC is smaller than conventional pumps of a similar type, allowing for installation in restricted spaces and providing for easier retrofit applications.
Fast air evacuation reduces the risk of air pockets developing at the mechanical seal preventing the danger of seal failure due to a lack of flushing and cooling.
The JCC is capable of lifting water from depths of 29 ft in less than 3 minutes, offers new possibilities on suction lift applications, and provides better trouble-free service on normal shallow-well suction lift duties, also with a long suction pipe above the water level.
The new diffuser and flow control device guides the fluid from the impeller into the central part of the pump casing, reducing turbulence and velocity, with effective use of the surrounding liquid in dampening the noise of flow.
APPLICATIONS
- For drawing water out of a well.
- For lifting water containing air or other gases.
- For increasing water pressure from flooded suction applications.
- As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
- For garden use.
- For washing with a jet of water.
- Close-coupled self-priming shallow well jet pump with built-in ejector.
- Connections: threaded ports NPT.
- 2-pole induction motor, 60 Hz (n ¢â¬¹ ¢â¬œ 3450 rpm).
- Three-phase 230/460 V.
- Single-phase 115/230 V, 115 V, 230 V.
- Capacitor inside the terminal box.
- Insulation class F.
- Protection IP 44.

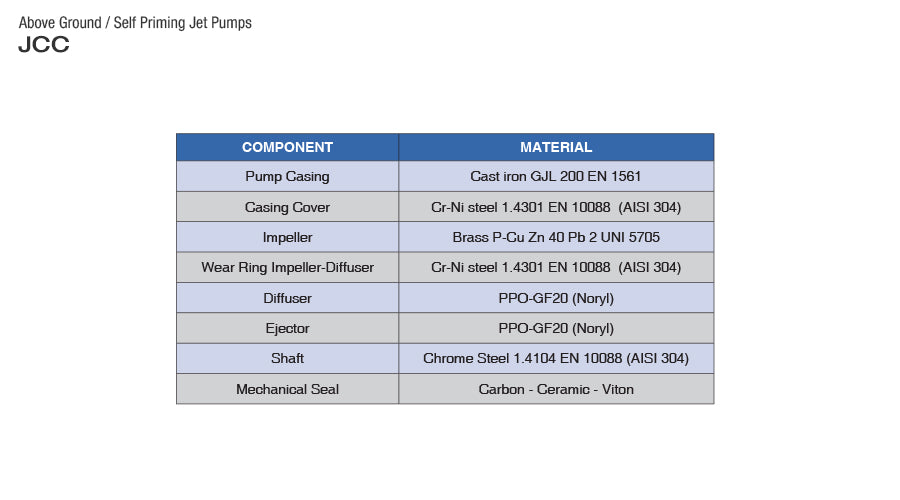

- Pump Casing: Cast iron GJL 200 EN 1561
- Casing Cover: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
- Impeller Brass: P-Cu Zn 40 Pb 2 UNI 5705
- Wear Ring Impeller-Diffuser: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
- Diffuser: PPO-GF20 (Noryl)
- Ejector: PPO-GF20 (Noryl)
- Shaft: Chrome Steel 1.4104 EN 10088 (AISI 304)
- Mechanical Seal: Carbon - Ceramic - NBR
